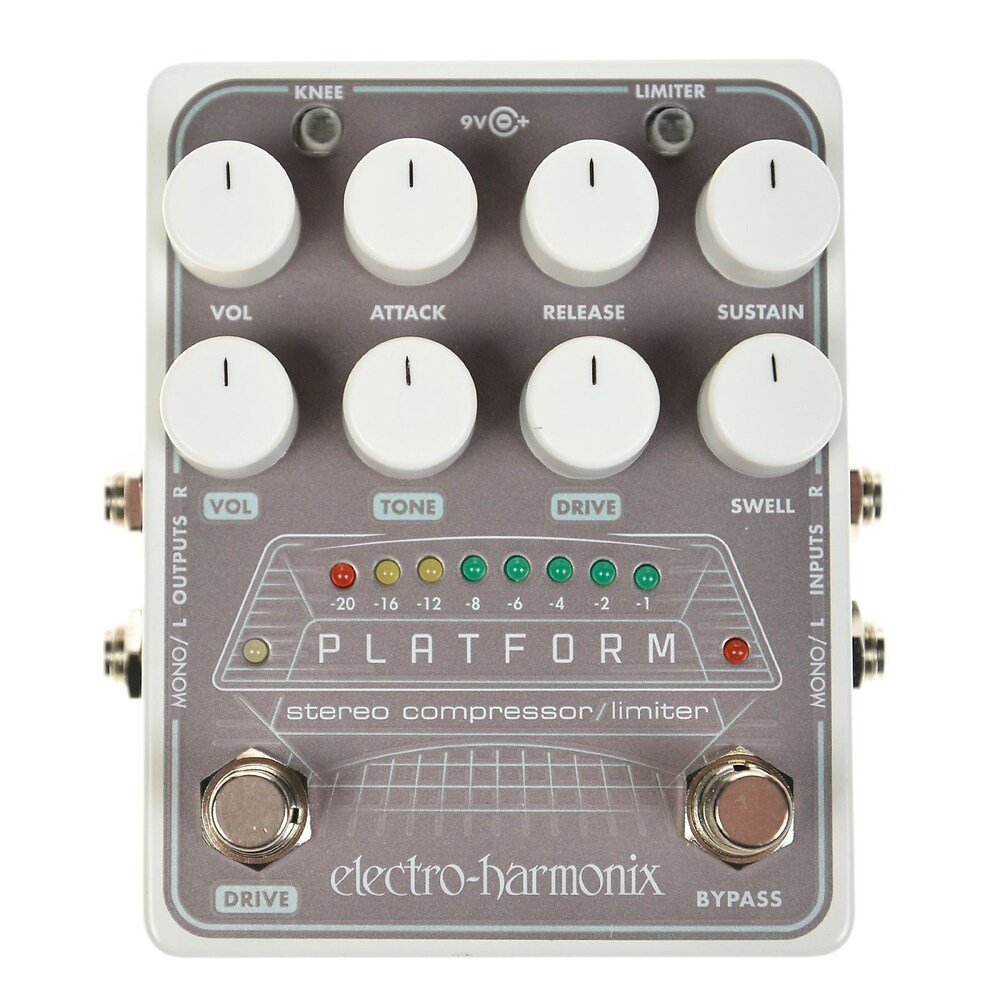

Electro-Harmonix Platform

Platform
Sophisticated, professional stereo compressor limiter!

The EHX Platform Stereo Compressor/Limiter presents you with a versatile and powerful studio-quality compressor enclosed in a stompbox-sized package. Use the Platform’s compressor/limiter on any instrument—such as guitar, bass or keyboards—for precise and powerful control of your signal’s volume. Engage the Drive and Swell functions to further tailor and enhance your sound. Whether you’re on stage, in the studio, putting together a podcast or creating your next YouTube masterpiece, the Platform will help you get the job done.

Controls:

1. VOL [Main Output Level] - Control master volume. Use this control to balance your level between bypass and effect mode.
2. ATTACK - Sets the amount of time delay before the compressor/limiter is activated once the input signal level reaches or exceeds the threshold setting.
3. RELEASE - While the compressor/limiter is acting on the signal, the input may drop below the threshold setting and cause the compressor to cease working on the signal. The compressor does not stop working immediately, though. Rather, it gradually stops over a period of time that is set by the RELEASE knob.
4. SUSTAIN - Compressor Mode: Adjusts compression ratio. Limiter Mode: Adjusts threshold level.
5. VOL [Drive Level] - Controls the output volume of the Drive section.
6. TONE -Adjusts the frequency response of the overdrive’s hi-cut filter, allowing you to dial in the perfect overdrive tone.
7. DRIVE - Controls the input gain of the overdrive section.
8. SWELL - Adjust fade-in time.
9. KNEE Button - Changes the compression/limiting curve to produce a compression sound that is either more or less transparent.
10. LIMITER Button - Engage the limiter.

Specifications:

• Circuit : Digital

• Bypass : Buffered Bypass

• Audio : Stereo

• Power Supply : 9.6VDC-200mA power adapter included

• Dimensions (in) : 4.75 x 4.13 x 2.25

• Current Draw : 125mA
