Dreadbox Hysteria

HYSTERIA
Performance VCO

Hysteria is an analog voltage-controlled oscillator (VCO) with advanced pitch control and a versatile wave shaper, perfect for dynamic performance and precise tuning.

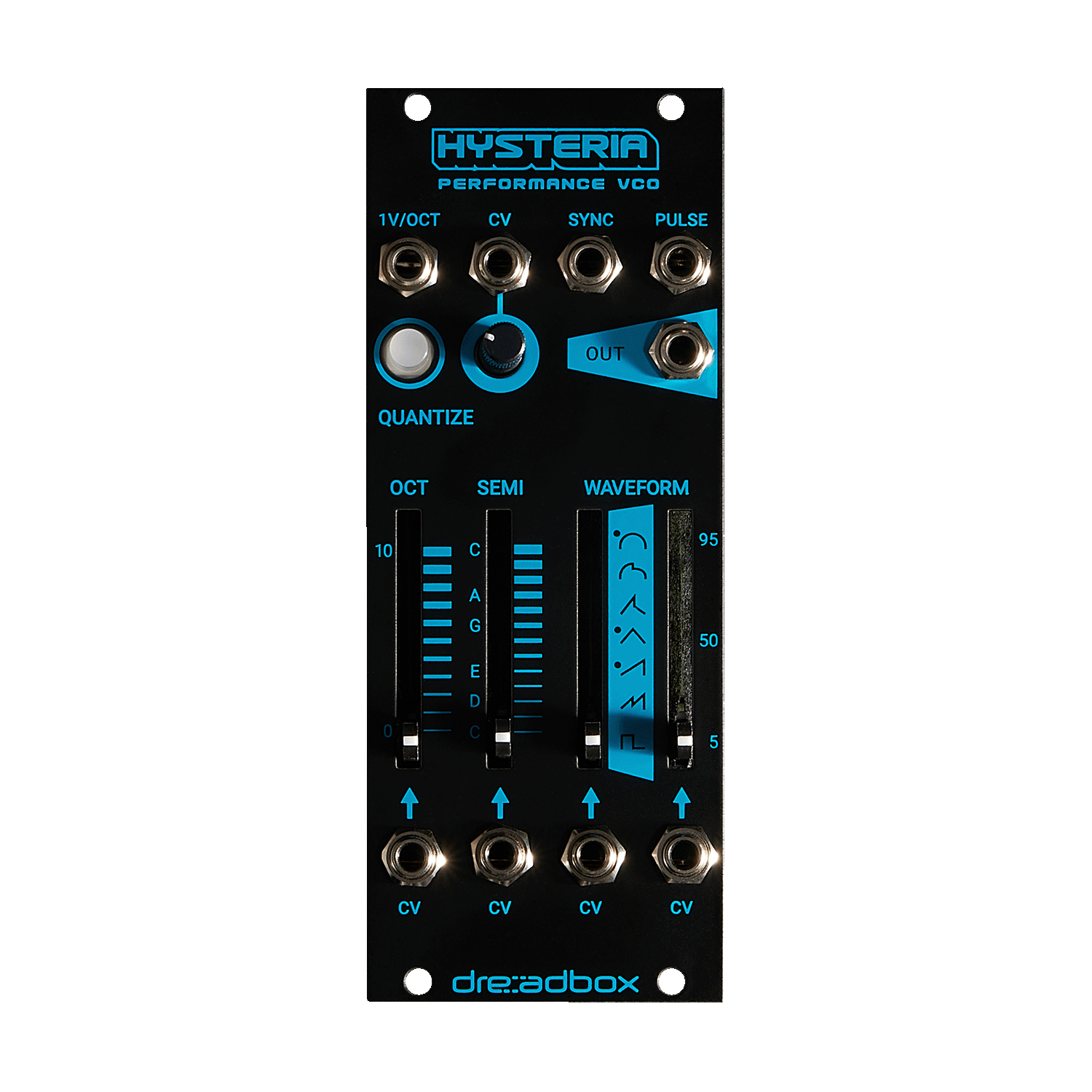

The Dreadbox Hysteria is a 10HP analog voltage-controlled oscillator (VCO) module for Eurorack systems. It features an integrated quantizer, a variable wave-shaper, and an onboard low frequency modulator.

Features:

• Wide Frequency Range: 16Hz to 32kHz

• Voltage-Controlled Wave Shaper for rich sound design

• VC Quantizer ensures perfect tuning

• Hard Sync Input for complex timbres

• Dedicated Pulse Output for clocking/syncing other modules

• Compact & Power Efficient: 10HP, 114mA (+12V) / 46mA (-12V)

Controls:

1. QUANTIZE - Selects Tune Mode.
2. CV INPUT - Set amount attenuator that scales incoming voltage.
3. OCT - Coarse Tune / Octaves.
4. SEMI - Fine Tune / Semitones.
5. WAVEFORM - Waveshape controls.
6. PULSEWIDTH - Pulsewidth controls.

Specifications:

• Type: Performance VCO

• Oscillator: 1 x VCO

• Analog Inputs: 1 x 1/8" (1V/oct)

• Analog Outputs: 1 x 1/8" (Main), 1 x 1/8" (pulse)

• Other I/O: 4 x CV In, 1 x Sync In, 1 x CV Attenuator

• Depth: 1.37" (35mm)

• HP Size: 10HP

• Current Draw: 58mA (+12V), 15mA (-12V)

• Power Supply: Eurorack Case and Power Supply

• Included box: 1x Ribbon cable, 4x 3mm Screws
