Walrus Audio Ages Five-State Overdrive - Black

AGES
Five-State Overdrive

For Ages, overdrive has been the one effect vital for so many. It’s used to charge through front lines of the mix and deliver a clear message that won’t soon be forgotten to its loyal listeners. Ages is a massively versatile overdrive machine standing at the ready for any amp and pickup combination that is thrown at it. An overdrive with innovative features that can stand on its own and stack well with other drives, Ages is ready to stand its ground and convey an unforgettable sound.

Think of each position as a different “flavor” of the pedal. Fine-tune each of these gain states with the dry knob for a near infinite supply of gain options.

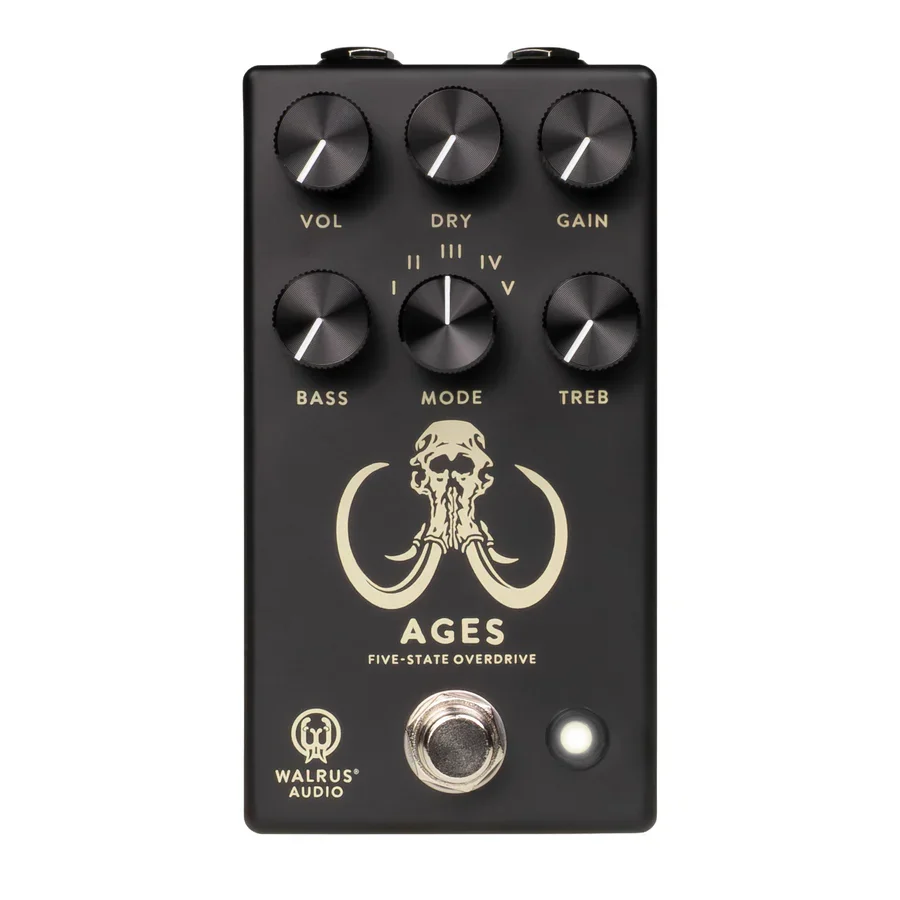

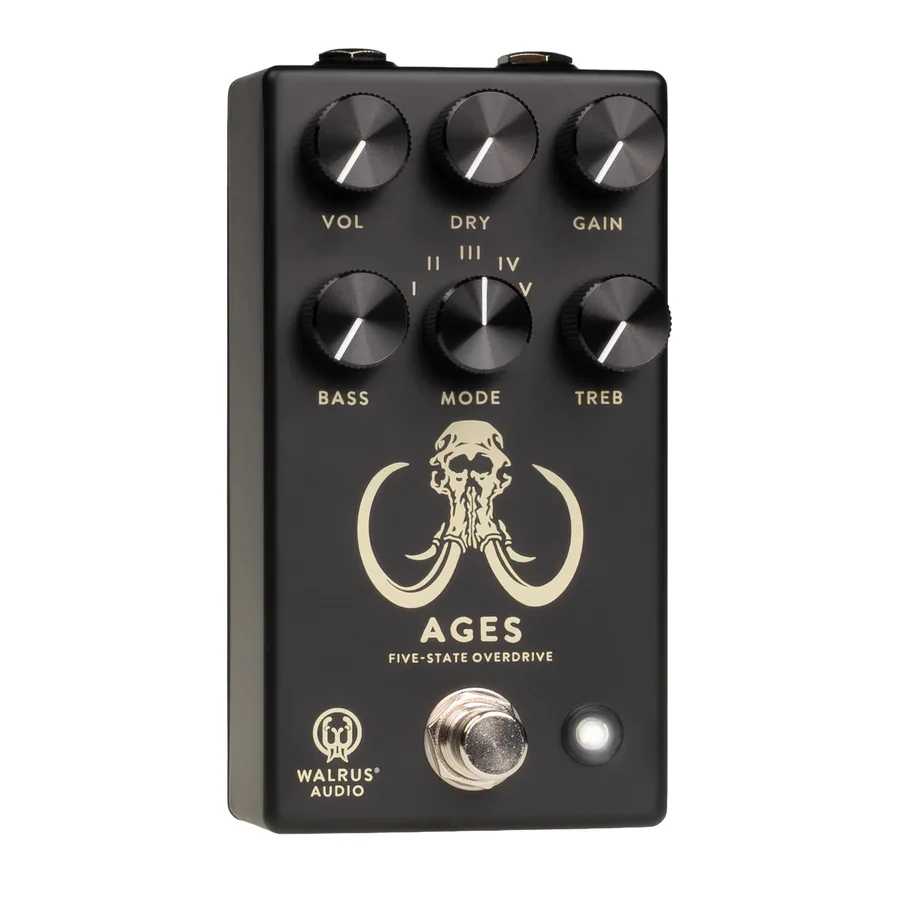

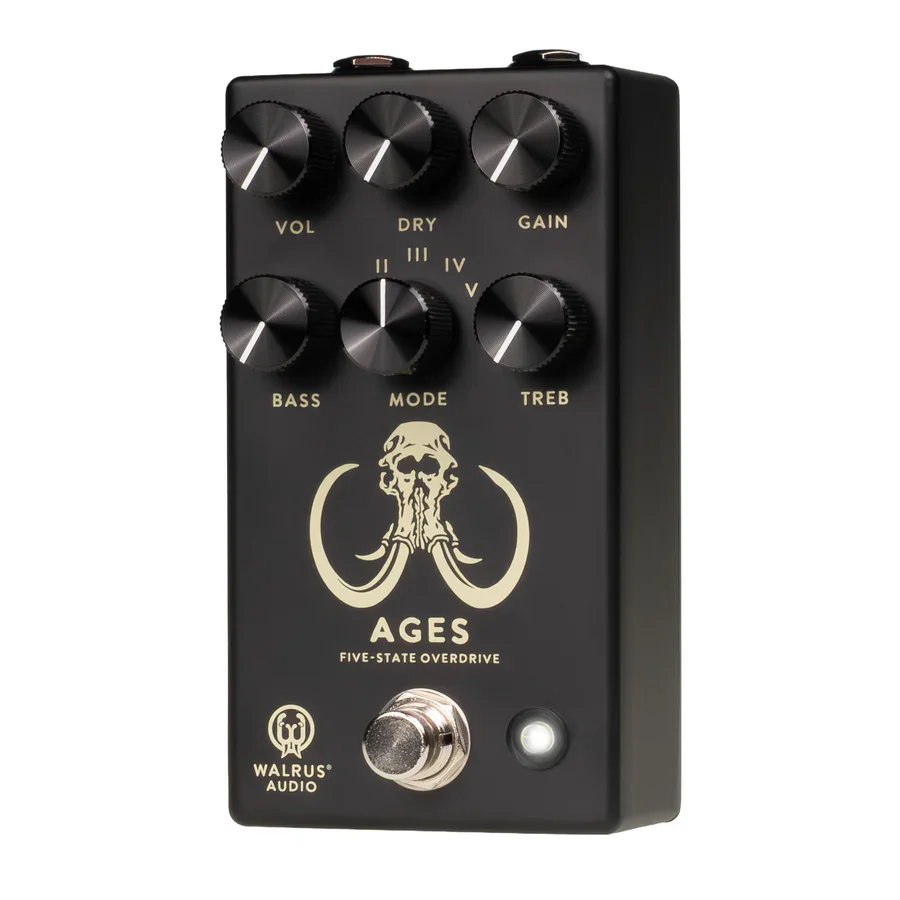

Controls:

VOL – The Vol knob sets the overall output volume of the pedal. The Ages has quite a bit of volume on tap so the Volume knob will be helpful to find the sweet spot for interacting with the rest of you rig.
DRY – The Dry knob controls the amount of dry guitar signal mixed in with the overdriven signal at the output. With this control at minimum, all dry signal is removed from the output leaving just the overdriven signal. Mixing in some dry signal with the overdrive can increase note clarity and give the drive a more “pushed amp” feel.
GAIN – The Gain knob sets the amount of gain applied to your guitar signal passing through the overdrive circuit.
BASS – The Bass control allows you to cut or boost low frequencies before they hit the overdrive. This can be helpful for beefing up thinner pickups or cutting the mud produced by some humbuckers. Starting at noon, turn down to remove bass and turn up to add bass.
TREB – The Treb control allows you to gently tame the high frequencies of the overdriven signal. Starting at noon, turn down to cut out highs and turn up to allow more highs.
MODE SWITCH – The Mode switch is a five-position rotary switch. Each position offers a different combination of internal gain and clipping style employed by the pedal. You can think of each position as a different “flavor” of the pedal.

MODE SWITCH:

I.    Low-gain mode with symmetric silicon soft clipping. Compressed and smooth.
II.   Low-gain mode with symmetric LED soft clipping. Pushed, open, and sparkly.
III.  High-gain mode with symmetric silicon soft clipping. Increased saturation and tight.
IV.  High-gain mode with symmetric LED soft clipping. Saturated, punchy and big.
V.   High-gain mode with symmetric silicon hard clipping. Heavy compression, thick and chewy.

Specifications:

• True Bypass

• The Ages comes in an “olive green” enclosure with white, cream and black ink. Artwork features a mythical three trunked warrior elephant ready to charge in victorious battle.

• Input impedance 1M ohms, Output impedance 10k ohms

• 9V DC, center negative, 100mA min – 2.62 x 4.77 x 2.25 inches including knobs.

• The use of an isolated power supply is recommended for powering all Walrus Audio Pedals.

• Daisy chain power supplies are not recommended. Power supply not included.
