Shnobel Tone Buffer

Shnobel Tone Buffer

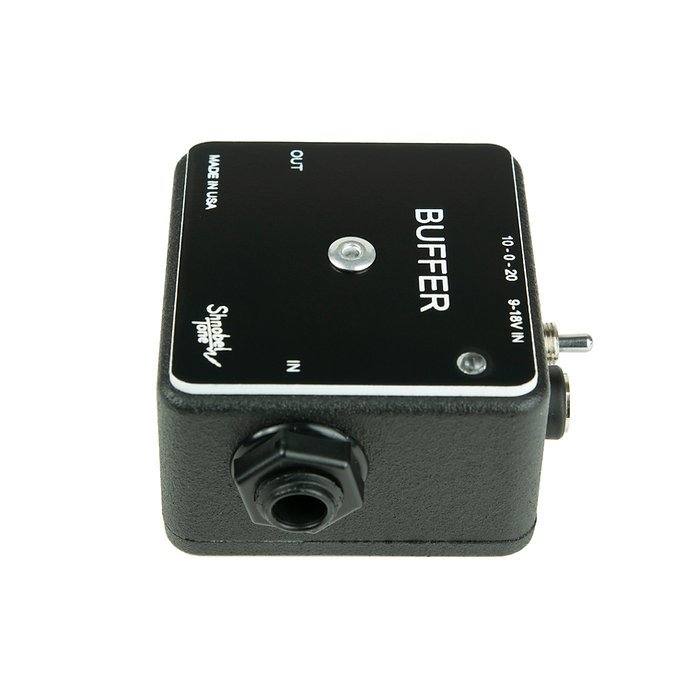

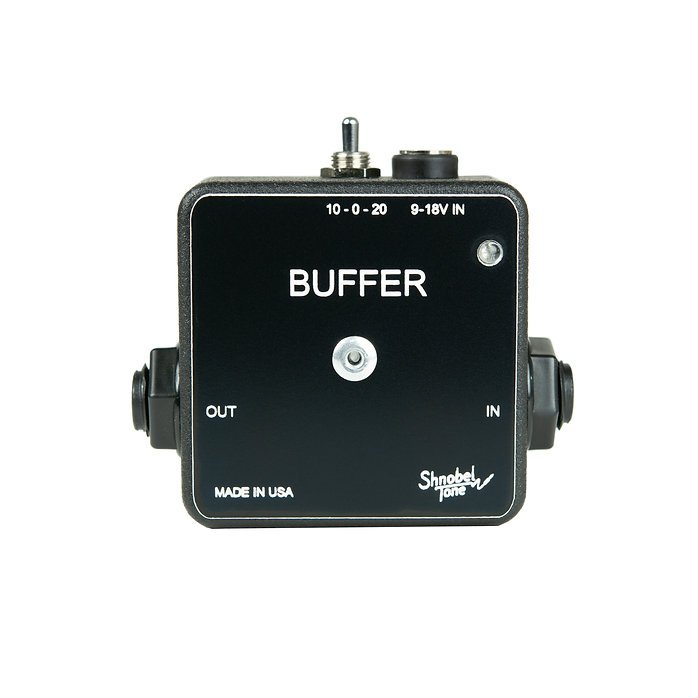

The Shnobel Tone Buffer is a compact class A Buffer that is designed to give you the most natural tube like guitar sound taking the output of guitars high impedance signal and turning it into a low impedance output that is a strong signal and is not effected by long cables.

The Buffer is meant to be the first device you plug your guitar into, it was designed along side several tube amplifier inputs, using a true bypass looper going back and forth between the buffer and the tube amp input, the components in the buffer were hand picked to where the buffer disappears when it is added to the signal before the tube amp, having the same harmonic and frequency extension as a the tube amplifier input.

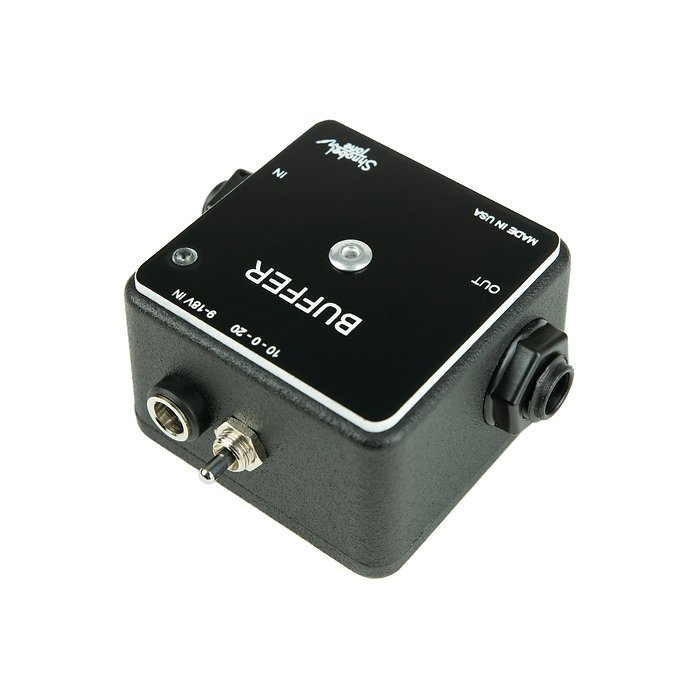

The toggle on the top of the buffer is for adding cable length to the input of the buffer to load the input signal down when used after a fuzz pedal for example where the cable length will vary the top end of the sound of the fuzz, this cable emulating circuit is also found on our Buffer Fuzz Interface pedal, the toggle can add 10 feet or 20 feet to the input, setting it at zero will give you standard buffer operation.

Specifications:

• Input Impedance 1M Ohms

• Output Impedance 50K Ohms

• Power Requirements 9-18v

• Current Draw 10mA

• Size 2.0 x 2.0 x 1.2 Inches
