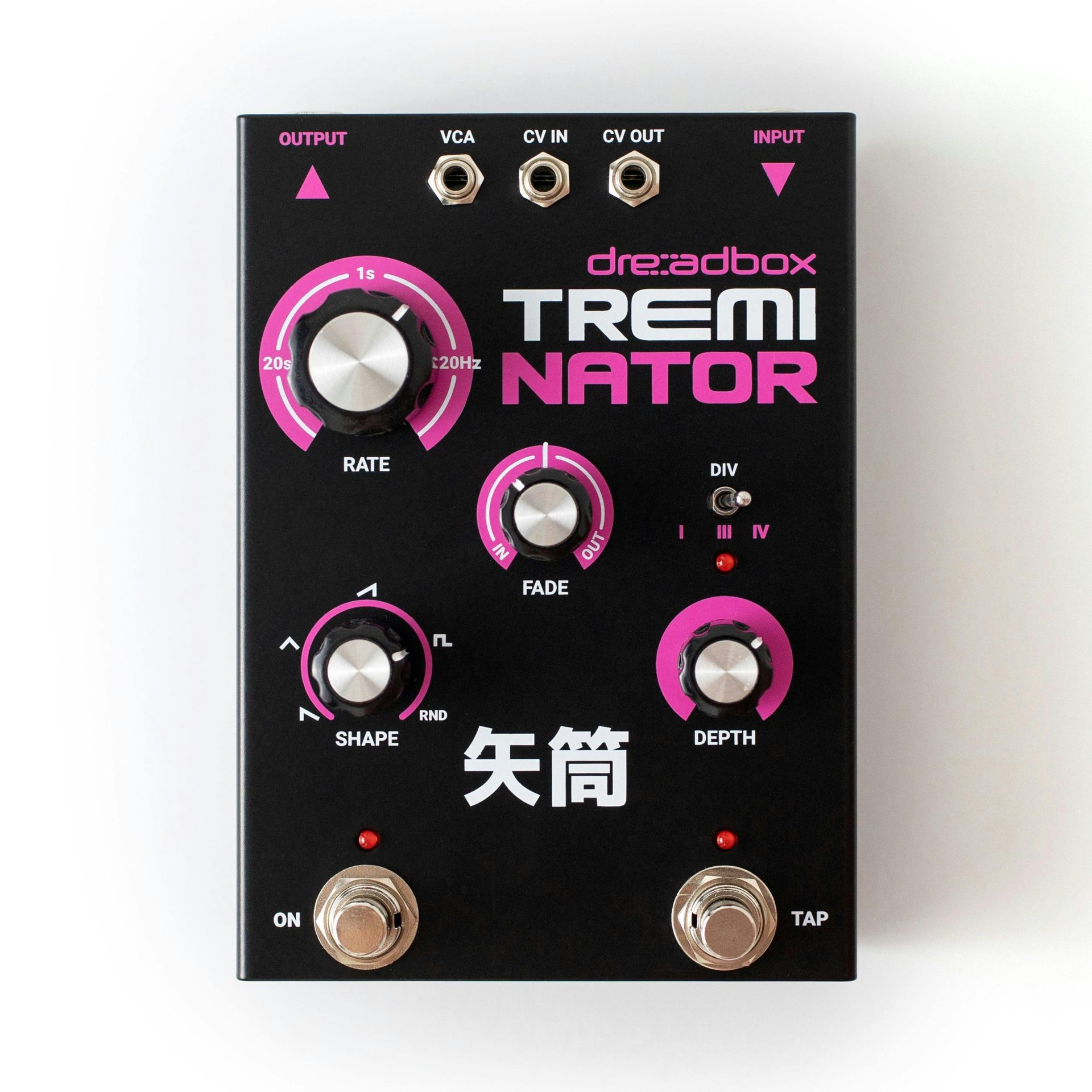

Dreadbox Treminator

TREMINATOR
Analog Tremolo

The TREMINATOR brings the power of a Voltage Controlled Amplifier (VCA) from synthesizers into a highly expressive tremolo effect pedal. Combining a wide-range LFO (20 seconds to 220Hz) with two envelope generators for dynamic control, TREMINATOR allows for intricate modulation and evolving tremolo effects.

At the heart of every synthesizer lies the VCA—the final stage where raw, unfiltered sound bursts to life. TREMINATOR taps into this core, offering a deep dive into evolving, dynamic soundscapes, where every pulse becomes a part of your performance—alive, breathing, and constantly shifting. It’s not just an effect—it’s an experience.

Features:

• Analog VCA circuit for authentic, smooth tremolo sounds

• Wide-range LFO from 20 seconds to 220Hz

• Tap tempo with multiple division settings

• Two envelope generators to shape LFO behavior

• 3 patch points for integration with modular and CV gear

Controls:

• DEPTH: Adjusts the overall intensity of the tremolo effect.

• FADE: Sets studio-style fade-in or fade-out times for the tremolo depth.

• SHAPE: Switches between 5 distinct LFO waveforms.

• RATE: Sets the LFO oscillation speed manually.

• DIV Switch: Sets tap tempo subdivisions or multiplier values (x1, x3, x4).

Specifications:

• Circuit: Analog Signal / Digital Modulations

• Bypass: Buffered OpAmp

• Audio: Mono IN/OUT

• IN/OUT: TS Unbalanced 6.4mm jack
• Other I/O: 1 x 1/8" (VCA), 2 x 1/8" (CV in/out)
• Power Supply:
9VDC / Center pin negative 2.1mm (NOT INCLUDED)

• Dimensions: (cm)
14 x 10 x 5.6

• Current Draw:
80mA
