ENGL EP635 Fireball IR Pedal

EP635 Fireball IR Pedal
ENGL Unleashes the EP635 Fireball IR Pedal – A Compact Powerhouse for Modern Guitarists.

ENGL, renowned for its high-performance amplifiers, proudly introduces the EP635 Fireball IR Pedal, a revolutionary 2-channel preamp pedal designed to deliver the legendary Fireball tone in a compact and feature-rich format.

The EP635 Fireball IR Pedal brings the raw power and precision of the ENGL Fireball amplifier into a pedalboard-friendly enclosure, offering unmatched flexibility and tonal control for guitarists of all styles. This cutting-edge pedal is equipped with advanced features, making it a must-have for players seeking high-gain perfection with modern digital convenience.

Features:

• 2 channel preamp pedal based on the ENGL Fireball amp
• Knob settings remain saved independently for each channel
• Built-in MID BOOST function, pressing the Bypass to toggle ON/OFF • built-in NOISE GATE with adjustable threshold
• Built-in USB-C IR loader with 3 selectible program slots
• Headphone output
• Dedicated software for IR cabinet files management

FACTORY IMPULSE RESPONSES:

• Up Position:ENGL E212VHB V30

• Middle Position: ENGL E412VSB V30

• Down Position: ENGL E412XXL V30

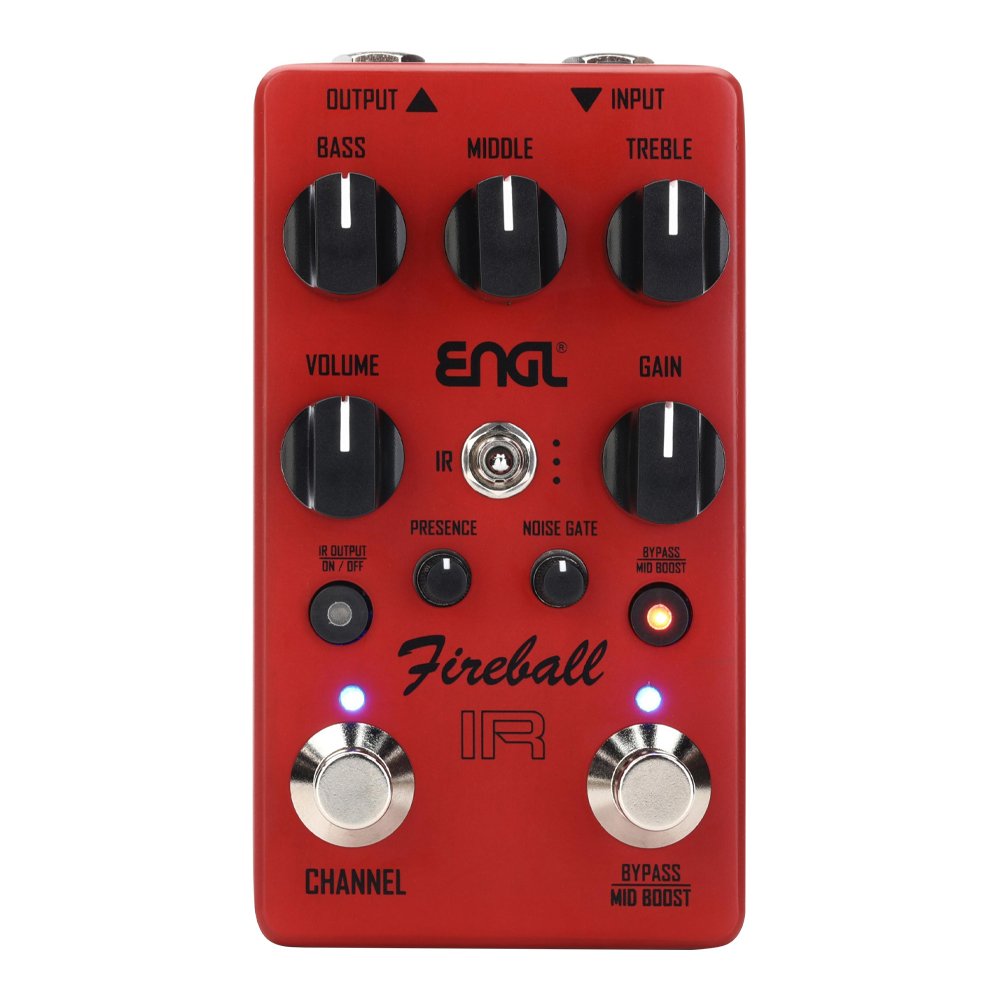

Controls:

1. BASS - Adjusts low frequencies
2. MIDDLE - Adjusts mid frequencies
3. TREBLE - Adjusts high frequencies
4. VOLUME - Adjusts output volume
5. GAIN - Adjusts gain
6. PRESENCE - Adjusts presence
7. NOISE GATE - Adjusts the NOISE GATE threshold
8. IR selector - Selects among 3 IR file loading slots
9. IR OUTPUT button - Toggles the cabinet simulation on the output jack ON/OFF
10. MID BOOST button - Activates/deactivates the MID BOOST function

Specifications:

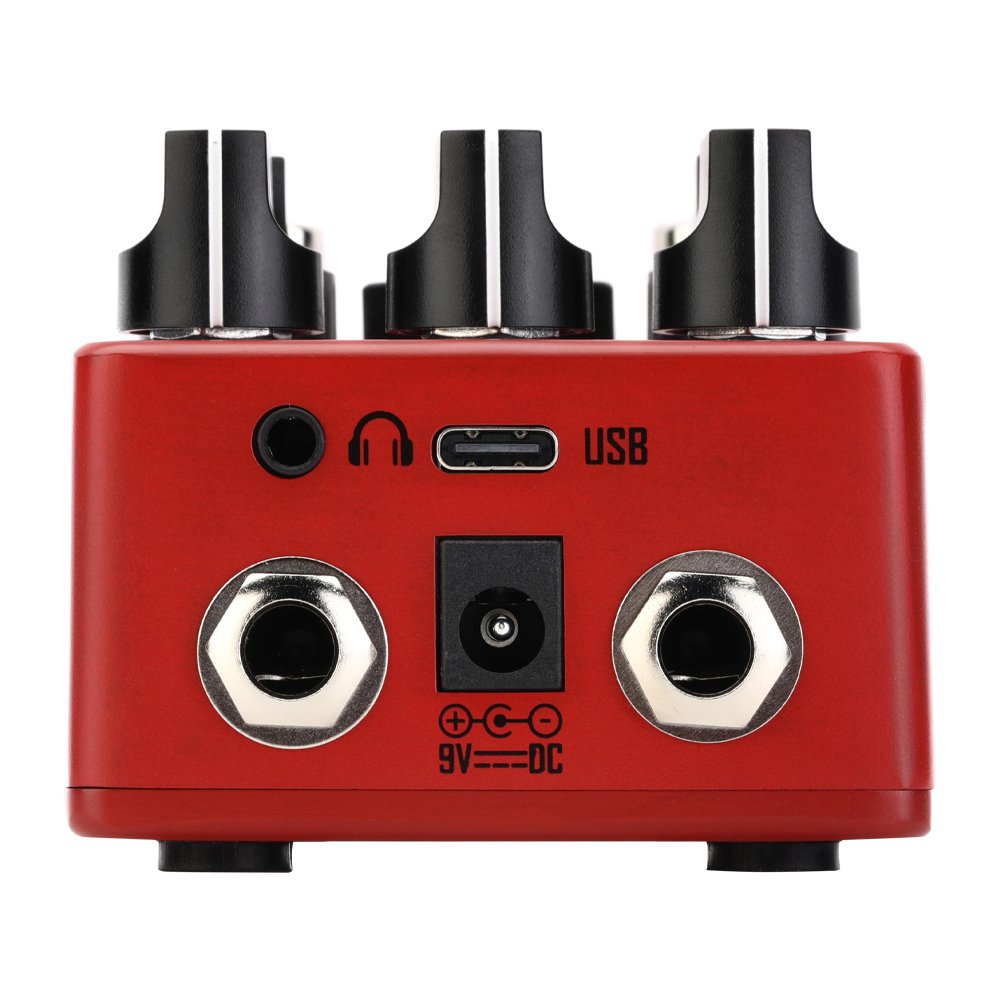

• Input: 1/4” unbalanced mono input jack (4.7M Ohms)

• Output: 1/4” unbalanced mono output jack (100 Ohms), 1/8” TRS headphone output jack (32 Ohms)

• Number of Preamp Channels: 2

• IR File Loading Slots: 3

• IR File Format: .wav

• IR Sampling Specifications: 44.1 kHz / 24 bit / 2048 points

• Signal-to-Noise Ratio: 94dB

• Power Requirements: 9V DC 300mA (center negative)

• Dimensions: 118×65×54.5 mm

• Weight: 0.318 kg
