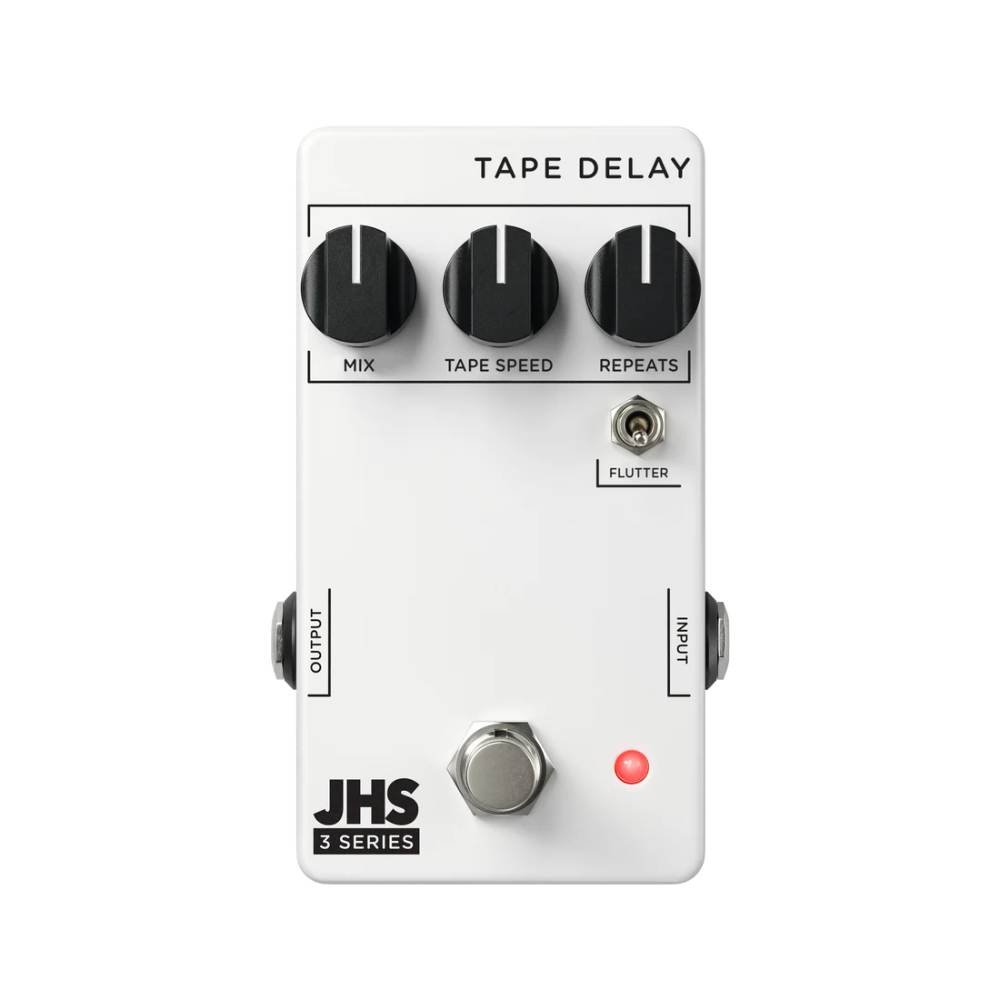

JHS 3 Series Tape Delay

Features

• Emulates classic tape delay units from the 1960s and 1970s
• Simple 3-control layout: Mix, Tape Speed, Repeats
• Flutter toggle adds subtle modulation for authentic tape-like character
• Delay time ranges from 15ms to 950ms
• Buffered bypass switching
• Compact, pedalboard-friendly design
• Made in the USA with high-quality components

Controls

• Mix: Adjusts the blend between dry and wet signals. Left is more dry signal; right is more wet signal.
• Tape Speed: Controls the length of the delay effect. Left is shorter; right is longer.
• Repeats: Determines how many repeats occur after you play. Left is fewer repeats; right is more.
• Flutter Toggle: Switch down is standard effect; switch up introduces mild modulation reminiscent of vintage units with mechanical wear.

Specifications

• Effect Type: Tape-style Delay
• Delay Time: 15ms / 950ms
• Bypass Switching: Buffered Bypass
• Power: 9V DC center-negative (not included)
• Current Draw: 65mA
• Dimensions: 4.42 x 2.38 x 1.22
• Input: ¼ mono jack (right side)
• Output: ¼ mono jack (left side)
