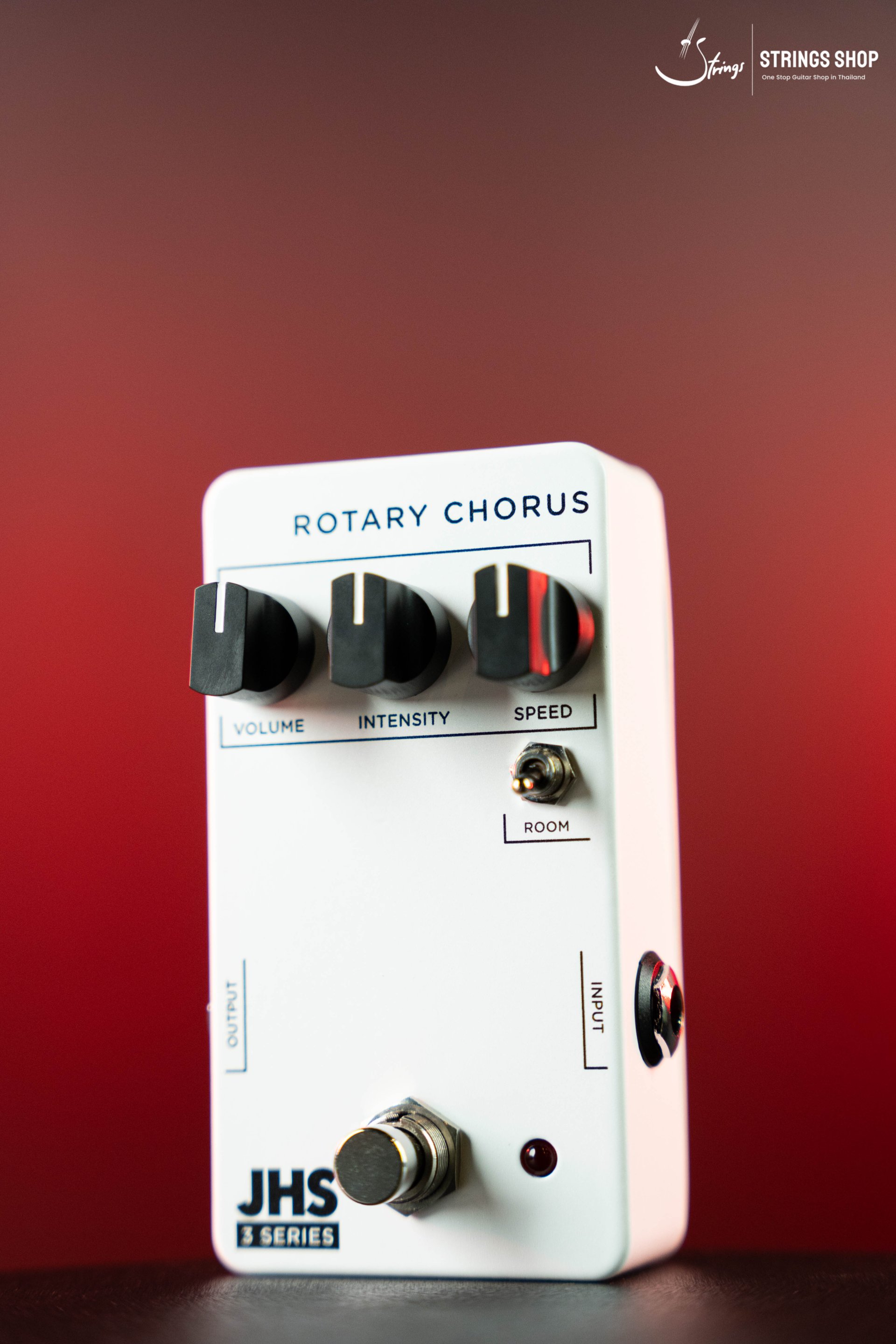

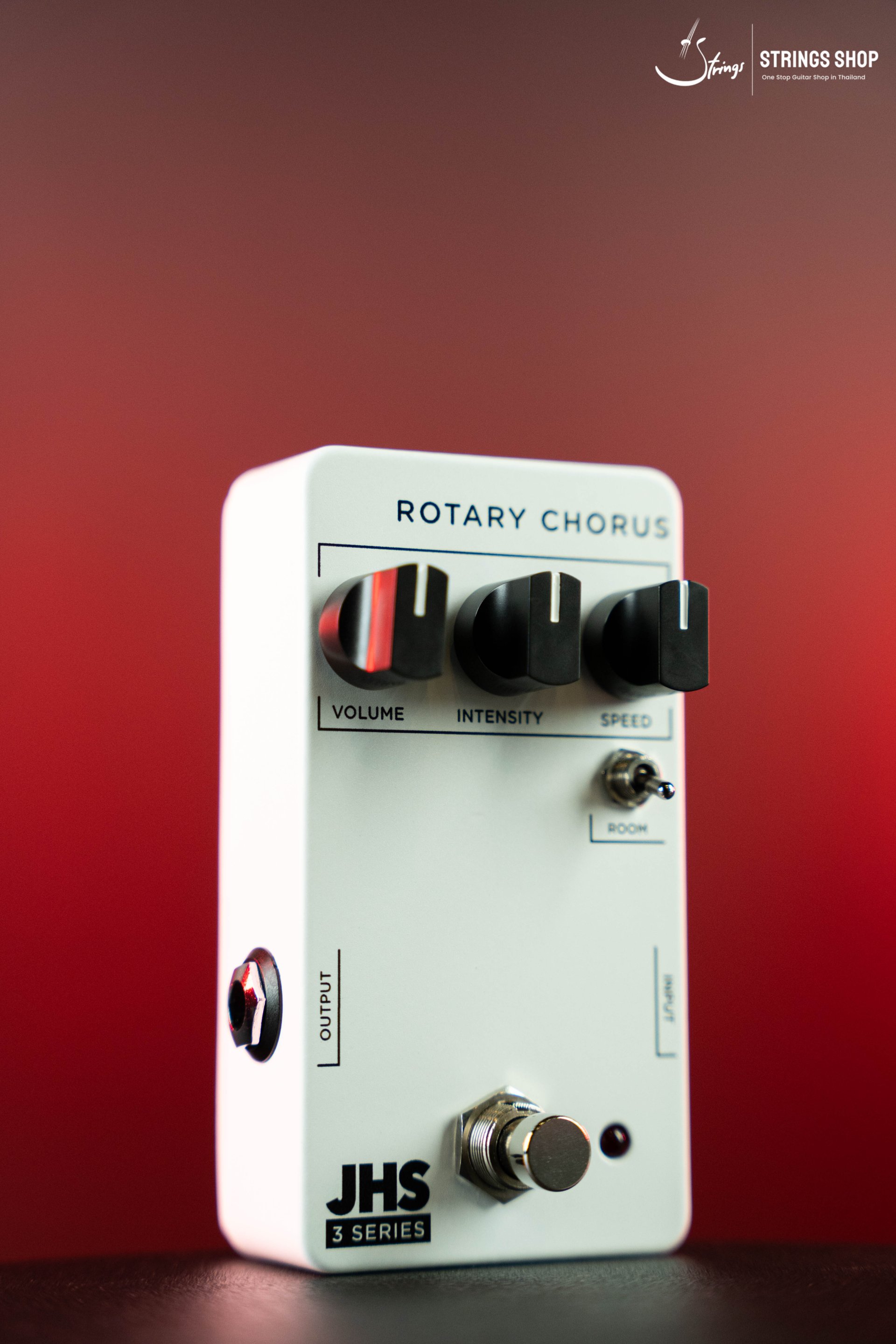

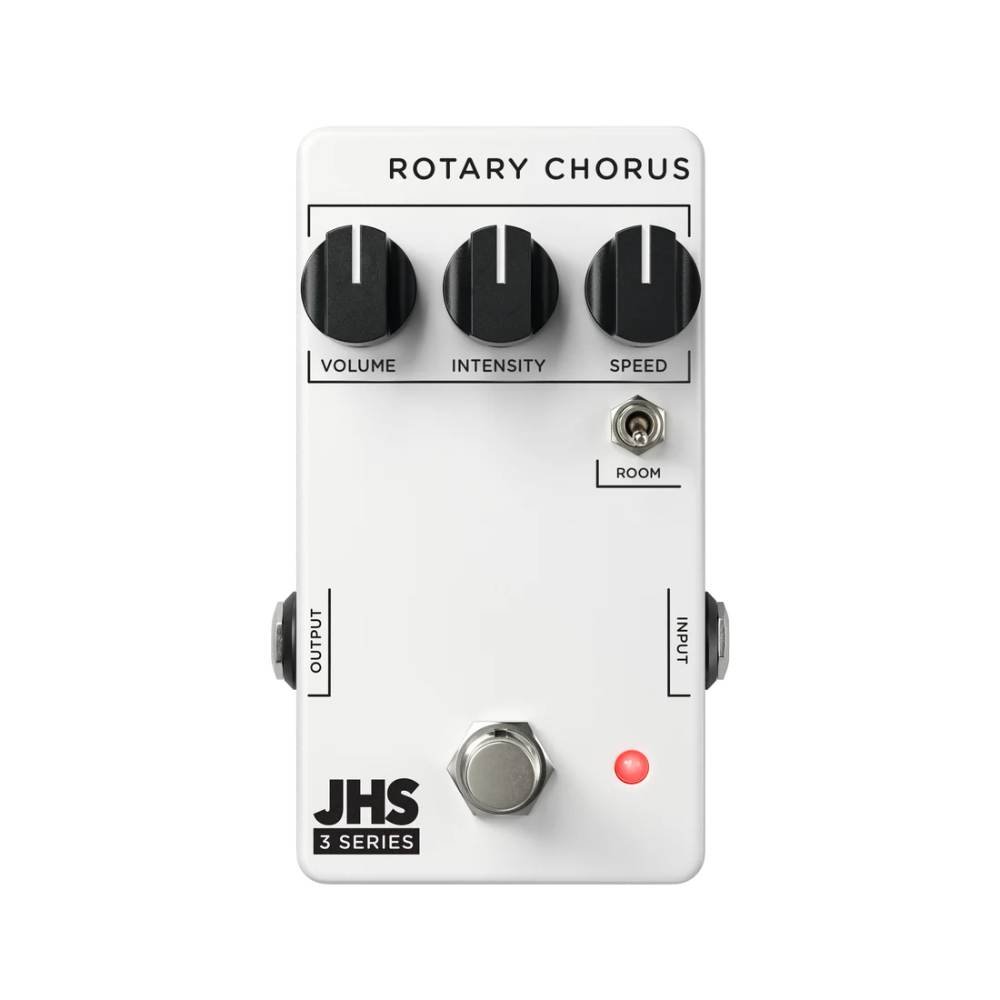

JHS 3 Series Rotary Chorus
Features
- Simulates the iconic rotating Leslie speaker and chorus sounds found on many classic recordings
- Simple 3-control layout: Volume, Intensity, Speed
- Room toggle adds additional reverb and recorded Leslie-style effect
- True bypass switching
- Compact, pedalboard-friendly housing
- Made in the USA with high-quality components
Controls
- Volume: Controls the overall volume of the pedal. Left is less, right is more.
- Intensity: Controls the modulation depth. Left is less, right is more.
- Speed: Controls how fast the simulated speaker spins. Left is slower, right is faster.
- Room Toggle: Switch down is standard effect. Switch up adds a roomy reverb ambiance to the sound.
Specifications
- Effect Type: Rotary Chorus
- Bypass Switching: True Bypass
- Power: 9V DC center-negative (not included)
- Current Draw: 65mA
- Dimensions: 4.42 x 2.38 x 1.22
- Input: ¼ mono jack (right side)
- Output: ¼ mono jack (left side)
