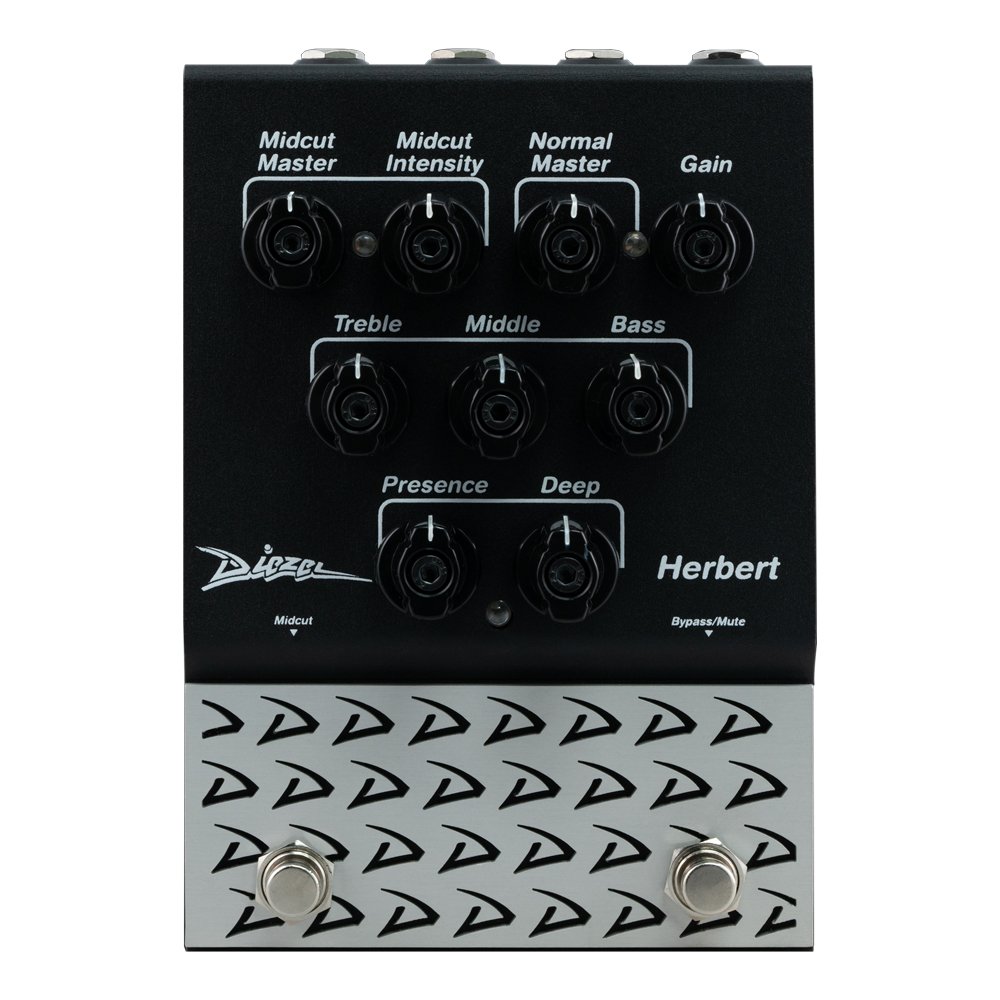

Midcut Master: Adjusts the volume of the pedal when the Midcut is on.
Midcut Intensity: Adjust the intensity of the Midcut.
Normal Master: Adjust the volume of the pedal when the Midcut is off.
Gain: Adjusts the amount of gain for the pedal.
Treble, Middle, Bass: Shapes the EQ and adjusts the overall tone.
Presence: Contours the high frequency content – simulating the PRESENCE control on the HERBERT amplifier.
Deep: Increases the ultra low frequency content – simulating the DEEP control on the HERBERT amplifier.

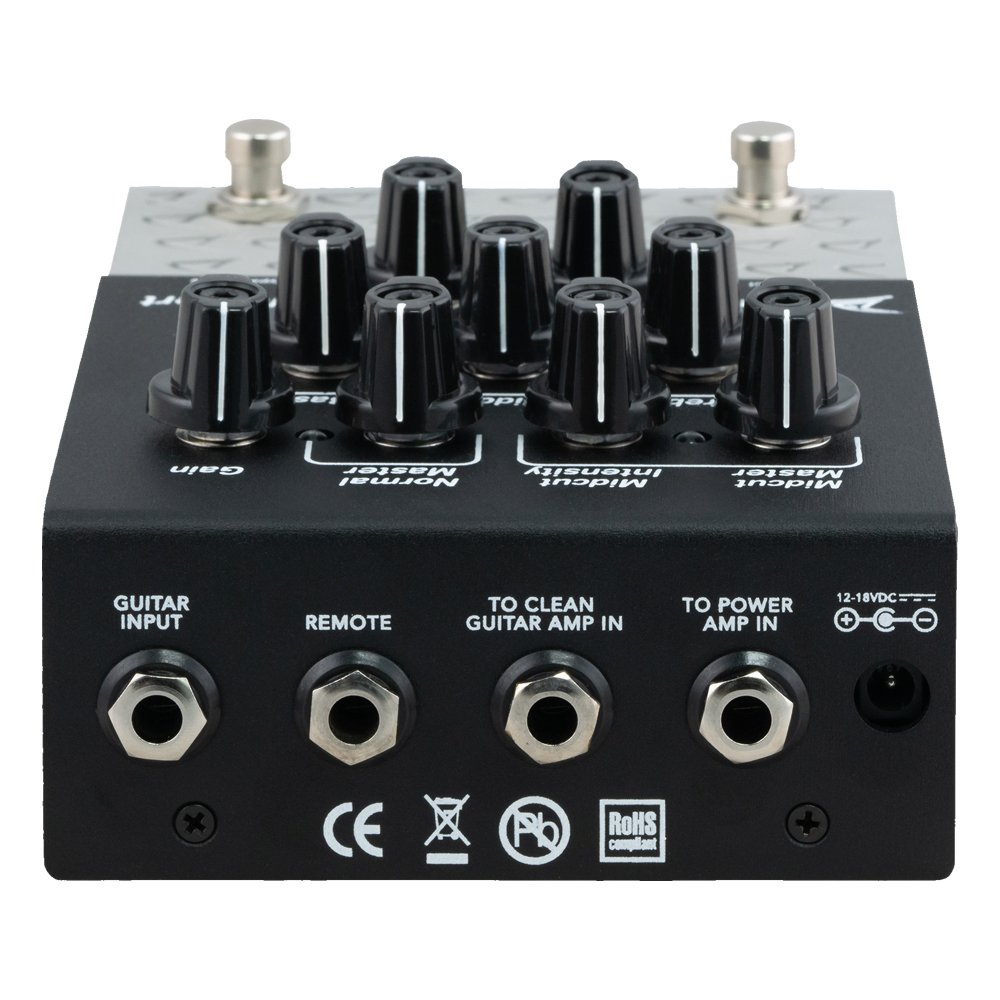

Guitar input: Connect your guitar to this input.
Stereo Remote Jack: Tip is switching Mid cut section on/off. Ring is switching Bypass on the “Out to guitar amp” or Mute on the “Out to power amp”.
To Clean Guitar Amp In: Connect to the clean input of your amp.
To Power Amp In: Connect to the power amp in.
12-18V Center Negative Included is a universal 12V power supply and 18V splitter cable.
