Highly Musical Ambient Effects

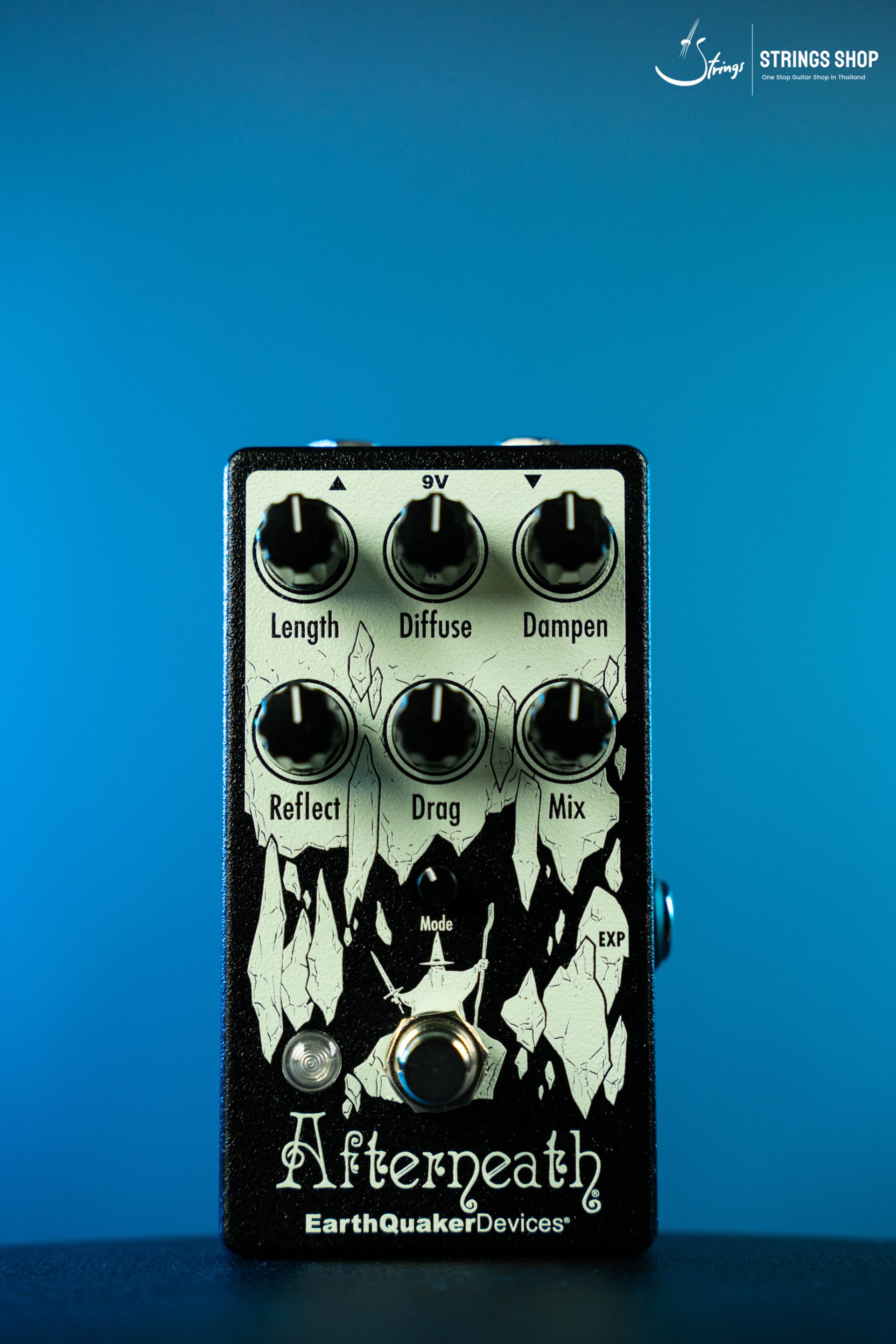

The original Afterneath pedal broke new ground for delay and reverb effects, and with the EarthQuaker Devices Afterneath V3 effects pedal, you have more creative control over these ambient effects than ever before. The evocative reverb algorithm is the same, using swarms of short delays to create unique washes of sonic texture. Now in its third generation, Afterneath V3 adds a voltage/expression input for external control, plus nine different modes that govern how the Drag control interacts with the reverb effect. Plug in an expression pedal, explore the different Drag modes, and discover an entirely new world of ambient effects with the EarthQuaker Devices Afterneath V3 effects pedal.
Multiple Drag modes produce surprisingly musical ambient effects
The way the delay and reverb interact within the Afterneath V3 effects pedal is rather esoteric — Sweetwater definitely recommends spending some time simply turning knobs and exploring different settings. When you set the Reflect and Length parameters to high levels, self-oscillation occurs, and you can use the Drag parameter to tweak the pitch of the oscillation. The Mode control directs the behavior of the Drag control, with nine different modes available.
Available Drag modes for manipulating self-oscillation:
Unquantized: allows a smooth pitch change over the range of the Drag control
Unquantized with Slew: similar to the Unquantized mode, but with a short lag behind knob/CV changes
Unquantized Volt/Octave: smooth, unquantized pitch changes, but scaled to align to a 1V/Oct curve for easier melodic manipulation
Chromatic Scale: quantized to 1V/Oct, adjusting Drag changes between intervals of the Chromatic scale
Major Scale: quantized to 1V/Oct, adjusting Drag changes between intervals of the Major scale
Minor Scale: quantized to 1V/Oct, adjusting Drag changes between intervals of the Minor scale
Pentatonic Scale: quantized to 1V/Oct, adjusting Drag changes between intervals of the Pentatonic scale
Octaves and Fifths: quantized to 1V/Oct, adjusting Drag changes between octaves and fifths of the original pitch
Octaves: quantized to 1V/Oct, adjusting Drag changes between octaves of the original pitch
https://youtu.be/HyYjj7q14dc
Tech Specs
Pedal Type:Reverb
Analog/Digital:Digital
Presets:9 x Modes for Drag Control
Inputs:1 x 1/4"
Outputs:1 x 1/4"
Other I/O:1 x 1/4" (expression/CV)
Bypass Switching:Buffered with Flexi-Switch Momentary/Latching
Features:Switchable Trails/No Trails setting
Power Source:9V DC power supply required (sold separately)
Power Usage:100mA
Height:2.25"
Width:2.50"
Depth:4.75"
Weight:0.87 lbs.
