HEDD Audio TYPE 20 MK2 BLACK/LEFT,RIGHT (Pair)

TYPE 20 MK2
Versatile 3-way monitoring with no compromise.

The TYPE 20 is a perfect all-rounder monitor designed as the ideal partner for studio professionals who need to work on a variety of audio tasks.

Thanks to the HEDD Air Motion Transformer driver, Closed or Ported mode, and DSP-enabled functionalities it delivers honest midrange clarity and plentiful low end performance.

The TYPE 20 is equally well-suited to bass-hungry beats, jazz recordings, soundtrack work, or Atmos mixing.

Features:

• 7” honeycomb woofer

• Dedicated 4” midrange driver

• 3 x 300W ICEpower class D amps

• High-definition Air Motion Transformer driver for clear, accurate upper mid and high frequencies

• High-end, 32bit SHARC DSP lets you tune the speaker to your needs

• CTRL software for advanced system management

• HEDD Lineariser, a zero-phase filter to create fascinating stereo image and depth

• Closed or Ported functionality gives you the best of two monitoring systems: accurate and detailed (closed) or energetic and bassy (ported)

• Desktop filter helps you remove reflections from nearby studio furniture

• Hi and Low shelving filters to tune output to your preference

• Bass-extension mode to increase bottom-end by up to 20%

• Complete, linear phase Satellite-Subwoofer setup with BASS 08 subwoofers

• Aluminum pot controls

• Analog XLR and Digital AES connections (supports AES/EBU with daisy-chaining)

• Assembled in Berlin with premium components

• Each unit is tested before shipping

• Mounting gear available separately, ideal for Atmos installations

• Ongoing feature support via the HEDD Access tool (downloadable separately)

• 5 year warranty after registration



Air Motion Transformer
Handmade in Berlin using high quality components, the HEDD Air Motion Transformer delivers a precise and wonderfully open sound. Thanks to ultra high frequency extension and remarkable transient response, natural sound reproduction is not distorted in any way.

HEDD CTRL
Dedicated free software that unifies the MK2 and BASS series into a transparent, reliable, and fully controllable monitoring ecosystem. Interact directly with the Lineariser® zero-phase filter, EQ, delay, and CoP controls to fine tune every element of your system in real time from the listening position.

CoP: Closed or Ported
With CoP all MK2 monitors can act as either a closed or ported cabinet with the use of a POM plug. These two monitoring systems give you different advantages depending on needs: ported (open) lets you feel the music with more bass response while closed increases bass precision, texture resolution, and transient response.

Designed and made in Berlin
All HEDD products are designed and assembled in Berlin by talented engineers and craftspeople who draw from a rich history in audio reproduction to create products tuned to the key of you.

Specifications:

• Main Features: HEDD Lineariser®, CoP, GDC, LFE, Desk and Shelf Filters

• Dimensions: 280 x 358 x 338 mm

• Weight: 15.4 kg per unit

• DSP Integration: Custom high-resolution 96 kHz / 32 Bit AD / DA converter

• Drivers: 3-Way: Proprietary 7" and 4" Honeycomb Woofers, HEDD AMT Tweeter

• Power: 3x300 W ICEpower amplification (85-264 V)

• Crossovers: 250 Hz / 3.200 Hz

• Frequency Range: 32 Hz - 40 kHz (LFE: 26 Hz - 40 kHz)

• Maximum SPL: SPL 120 dB SPL (sound pressure level) per pair at 1m

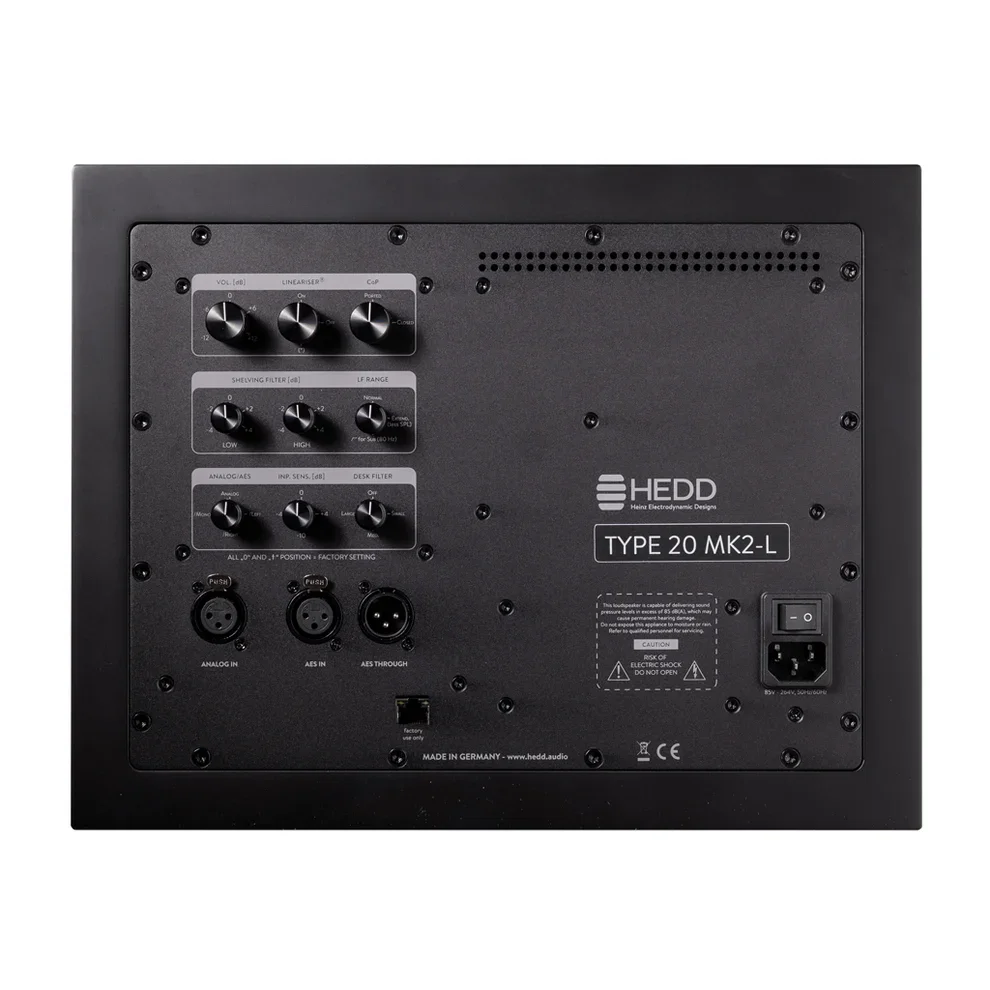

• Inputs: Analog (XLR / 22 kΩ) and Digital 2ch (AES / XLR)

• Output: Digital AES pass-through via XLR
