Advanced Reverb Laboratory
Categories : WHAT'S NEW , PEDALS & PEDALBOARDS , ELECTRIC GUITAR PEDALS ,
Brand : Electro Harmonix
Share
Oceans Abyss
Dive deeper into the depths of ambience!
The Oceans Abyss expands on Electro-Harmonix’s highly acclaimed reverb technology to deliver a truly immersive effects workstation. The pedal is centered around dual reverb engines that are independently programmable with all-new full-stereo algorithms including Hall, Spring, Shimmer and more. Place these reverbs into a customizable signal path with additional FX blocks like Delay, Chorus, Tremolo, or Bit Crusher for a completely unique soundscape building experience.
Electro-Harmonix has paved the way for powerful, accessible reverbs since the release of the original Holy Grail and now we’ve pushed the envelope deeper with the fully-equipped Oceans Abyss. Featuring a customizable signal path with up to 8 effects blocks, the Oceans Abyss can be configured as individual reverb, modulation, EQ, delay, bit crusher, saturation or volume effects, or as countless combinations for incredibly creative effect shaping. From a simple Spring reverb to a lush stereo field featuring stereo hall and shimmer reverbs, chorus, delay, overdrive, and tremolo, you can go from surf to shoegaze instantly, without breaking a sweat.

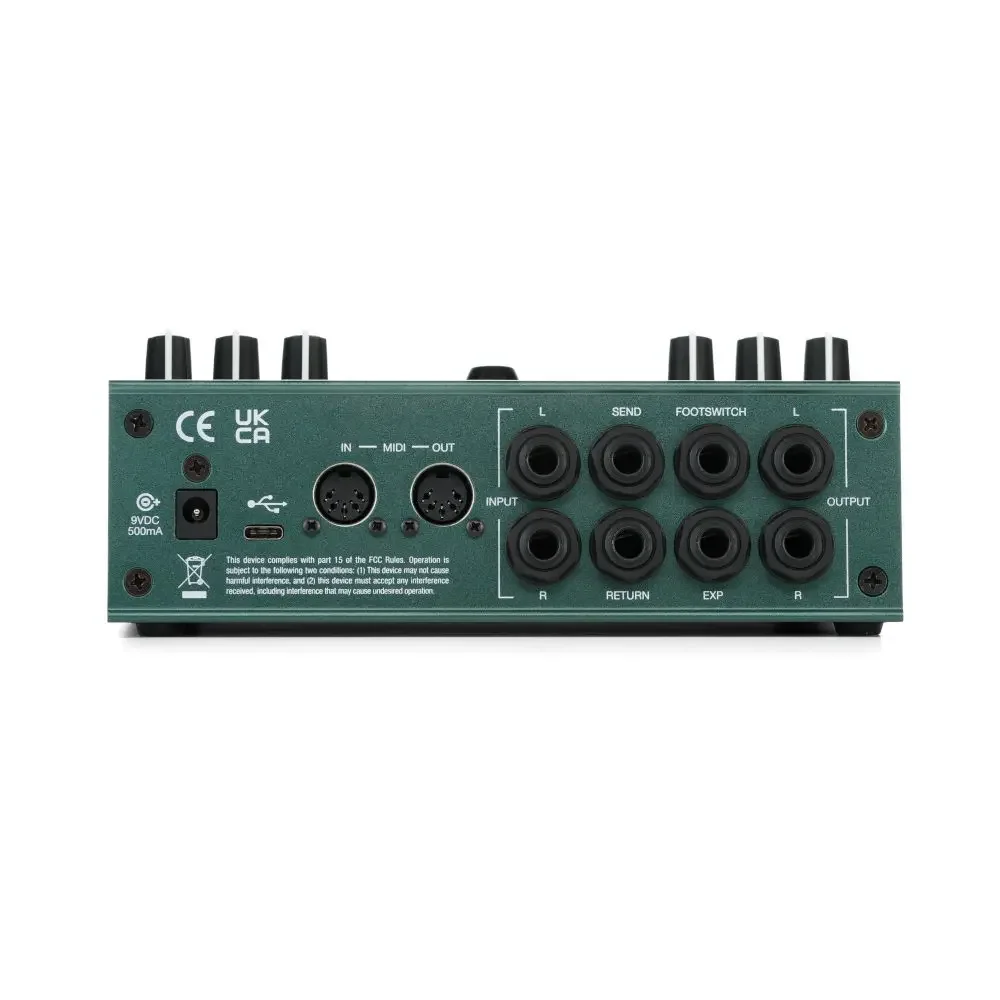

Deep parameter editing is accessible via the high-visibility OLED display with multiple graphical views and easy-to-read designs. Expression/CV control over nearly every parameter gives artful control of your effects and dynamics. Fully-stereo I/O plus an FX Loop allows for use with any instrument, recording set up, or live rig. 128 programmable presets via onboard footswitching or MIDI ensure perfect recall in all performance situations. MIDI IN/OUT ports with MIDI IN support of PC, CC, and Tempo Clock expand the already immense talents of the Oceans Abyss. Connect with UBS-C to Windows or Mac for effects editing, preset management, and more with the free EHXport™ app.

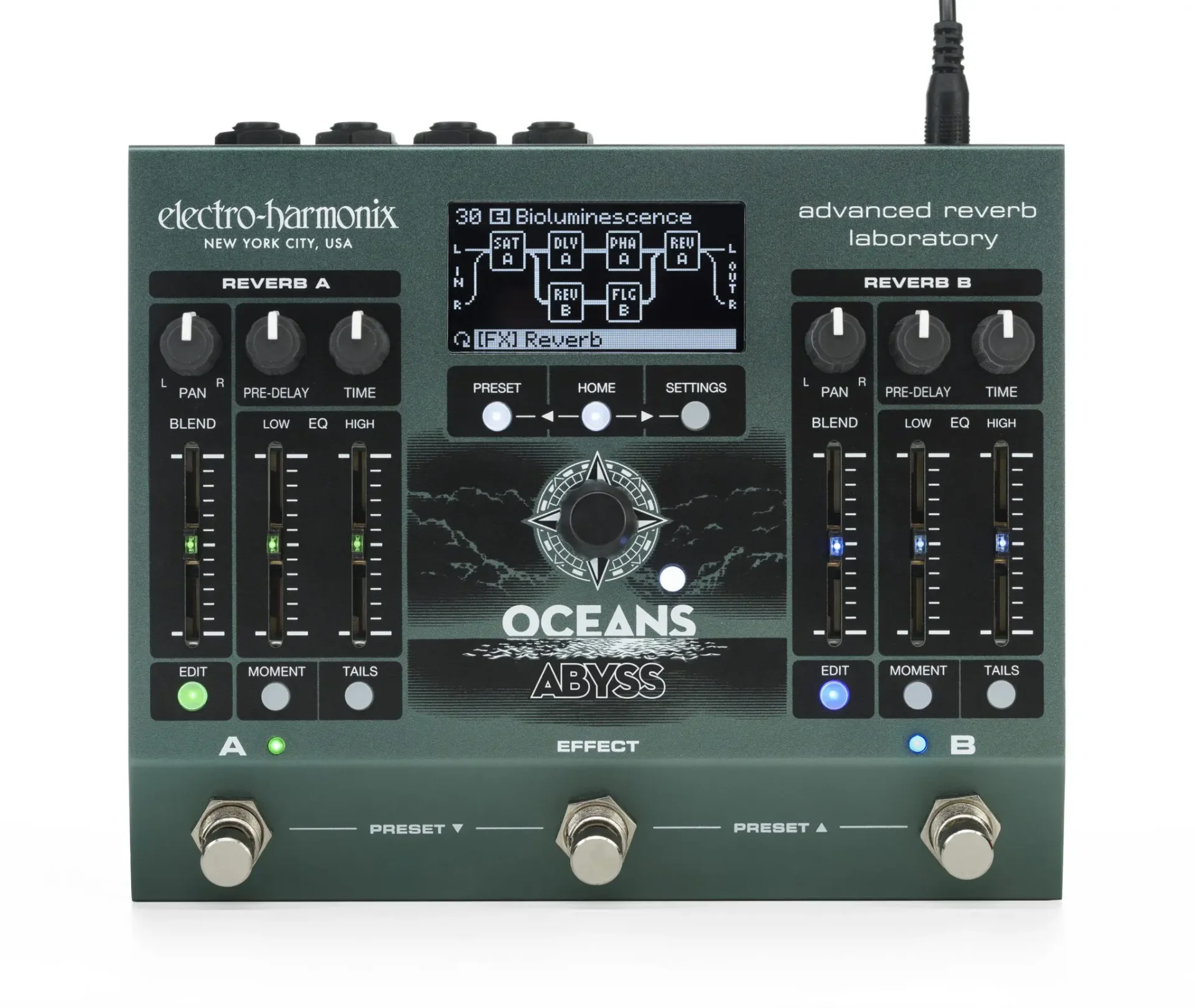

Controls:
1. NAVCODER - Allows you to navigate menus, parameters, and presets as well as adjust settings. The NavCoder provides the following movements:
2. PRESET - Press to load/unload presets on any non-Settings screens. Press & hold the PRESET button for preset save.
3. HOME - Press to go back to the home screen (SIGNAL PATH view) at any time.
4. SETTINGS - Press to enter the Global Settings menu.
5. PAN - Allow the output of each reverb engine to be moved within the stereo field, from hard left to hard right and anywhere in between.
6. BLEND - Control the wet/dry mix within each reverb block.
7. PRE-DELAY - Control the pre-delay time within each reverb block.
8. TIME - Control the decay time of each reverb engine.
9. EQ LOW, HIGH - Control the low shelf and high shelf EQ of each reverb block. The total range of each EQ slider is -12dB to +12dB.
10. EDIT - Allow for quick access to the reverb FX Editor where you can adjust all reverb parameters.
11. MOMENT - Allow you to change the A or B footswitch action from latching to momentary.
12. TAILS - When TAILS is enabled for an FX group, the trailing echoes or wash of the delay and reverb effects in the group continue to play after being switched to bypass.
Specifications:
