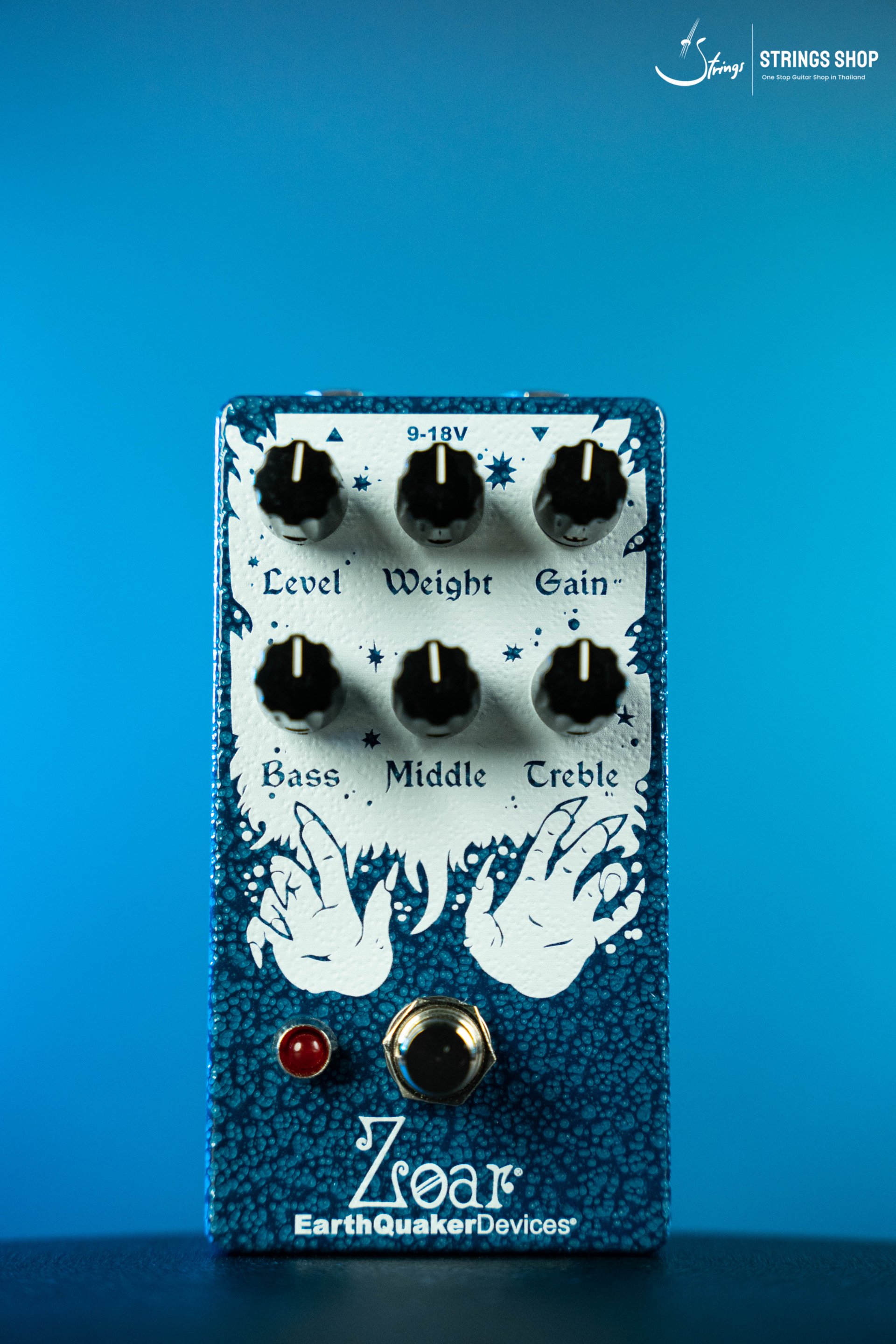

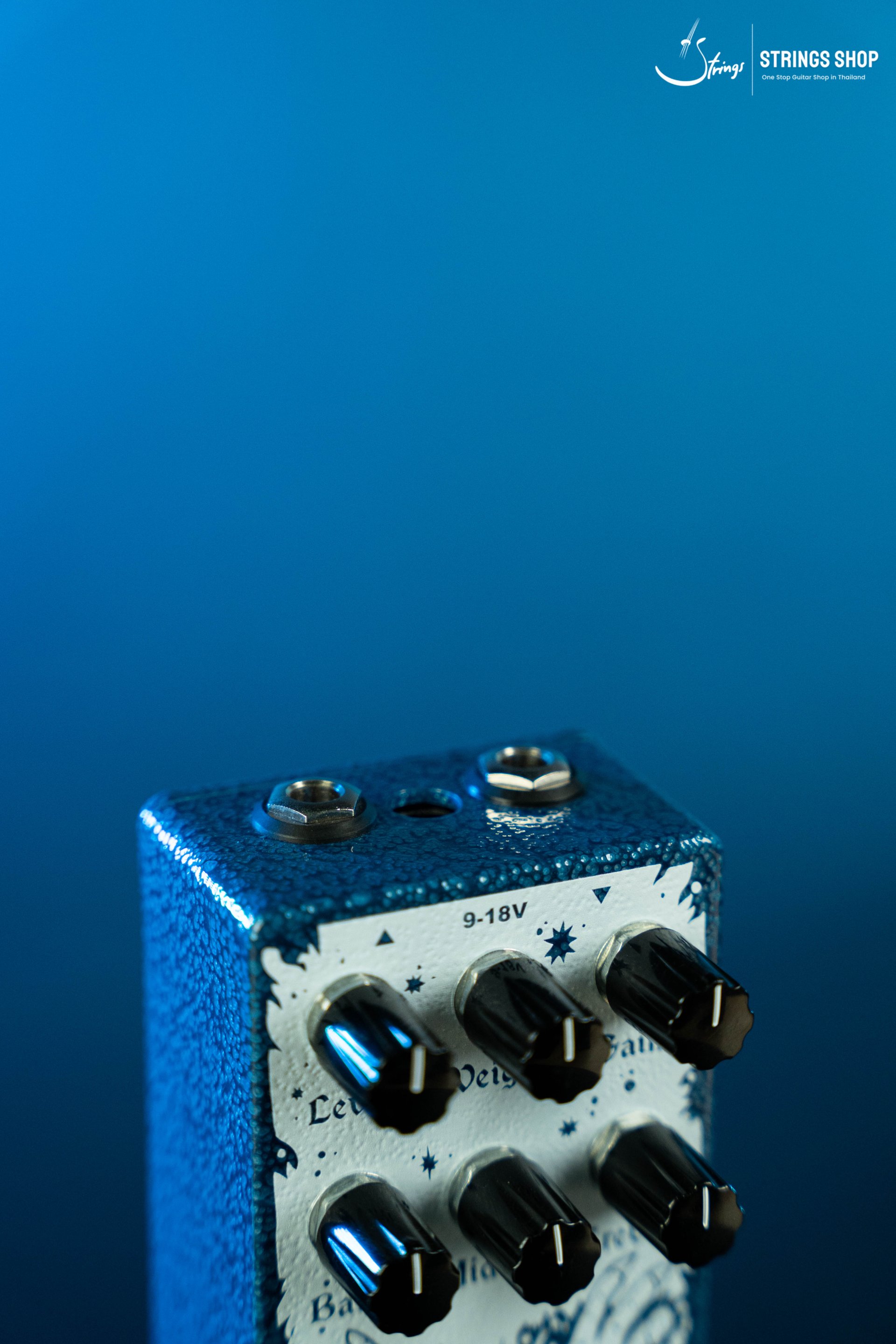

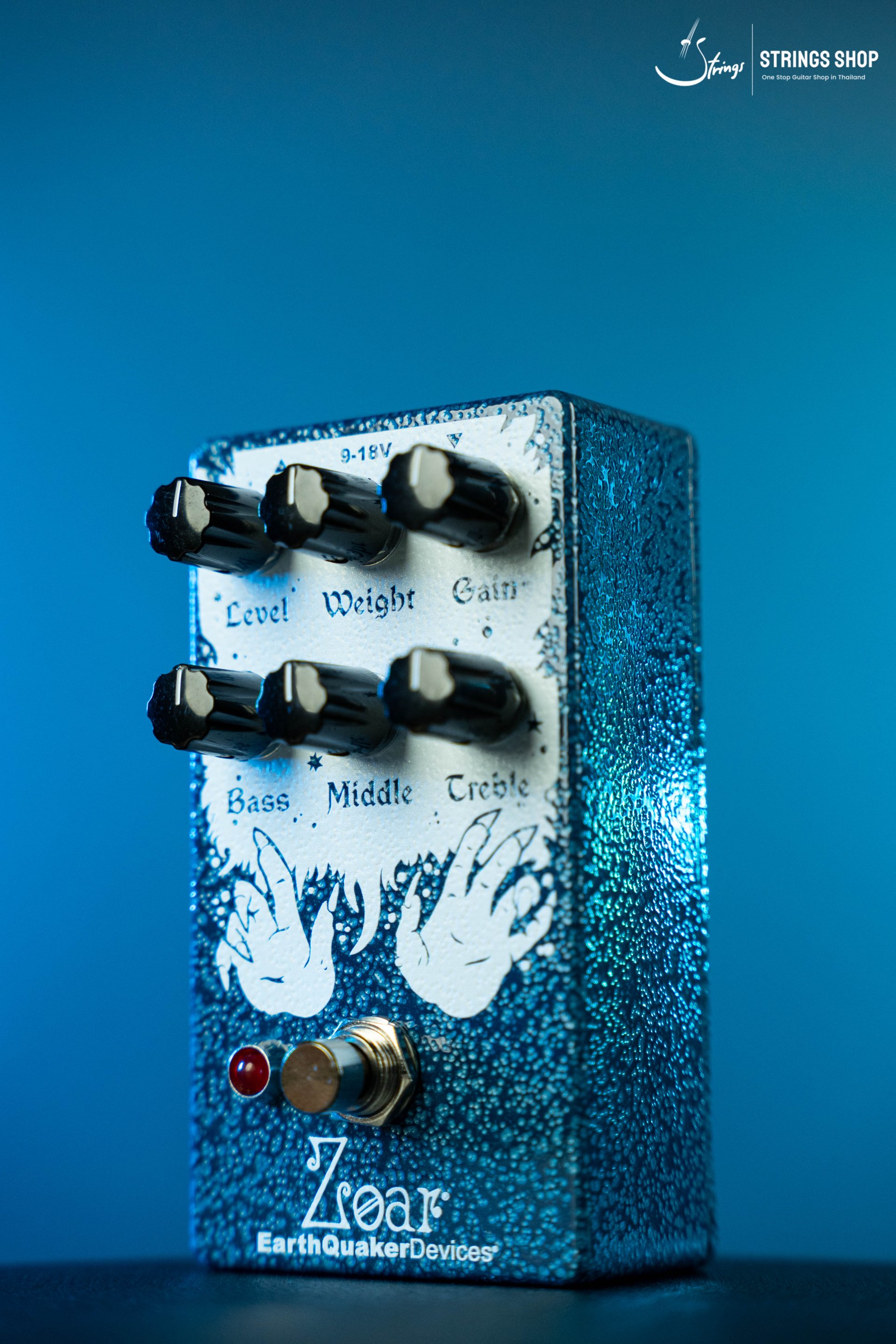

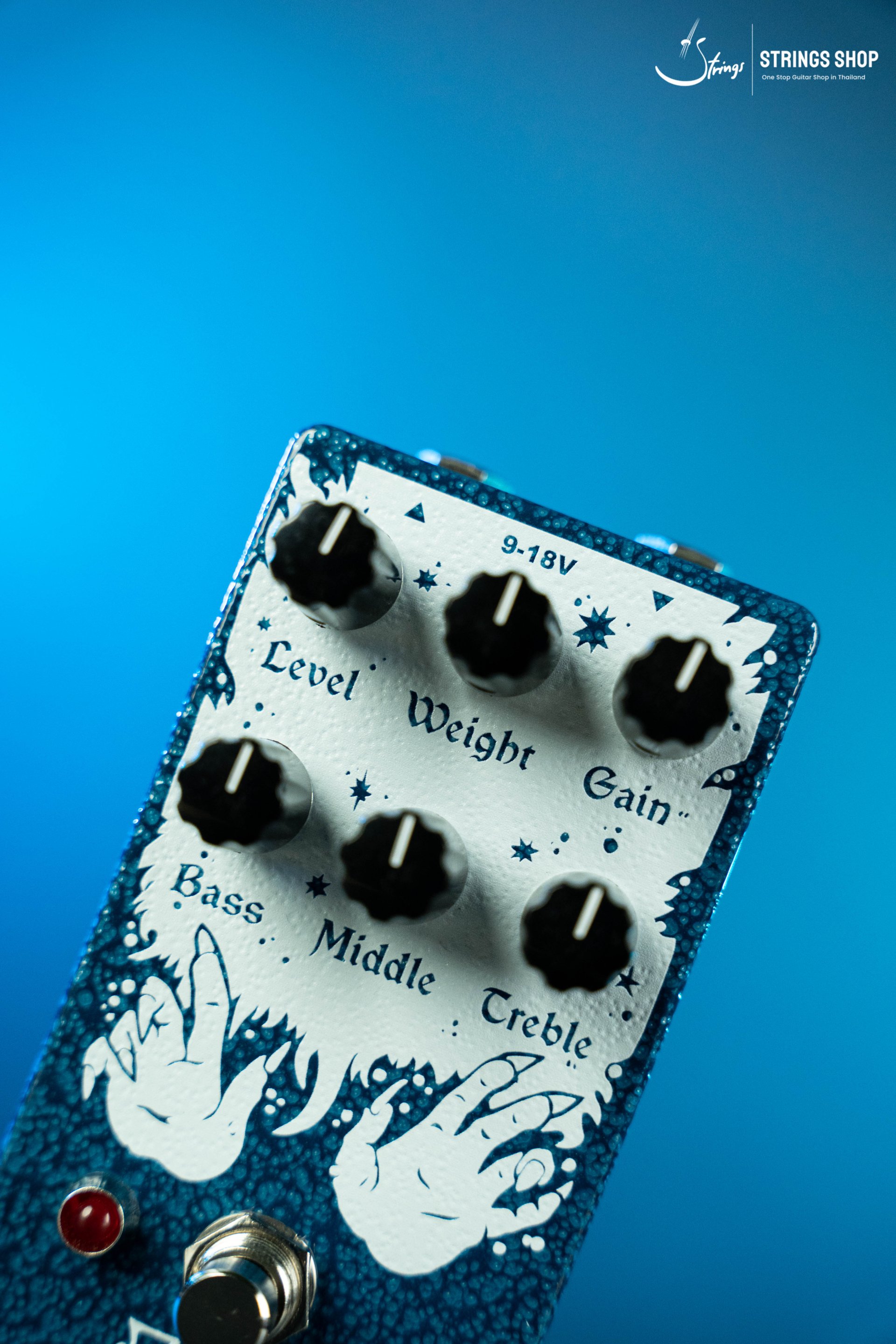

EarthQuaker Devices Zoar Dynamic Audio Grinder

Zoar is a medium-high gain discrete distortion (using only transistors; no opamps or diodes in here!) that has that touch sensitive amp-like quality to it that everyone craves. It has been finely tuned to create a highly tweakable hi-fi and modern sounding distortion, but with the ghosts of old school circuitry to deliver a grind that is both instantly familiar and delightfully unique. Want that defined sparkle and tightness of an overdrive? This has it. Want that low-medium gain fuzz that’s perfect for drop tuned guitars and basses? This has it. Want to be able to dial in and control every nuance of your tone from jangly on-the-verge of break up to blowing the walls out heavy saturation? Then this is the pedal for you.

Dimensions

4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs

Current Draw

10 mA

Input Impedance

1 MΩ

Output Impedance

<10 kΩ

Flexi-Switch® Technology

This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

• For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

• For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power

This device takes a 9-18 volt DC power supply with a standard 2.1mm negative center barrel plug. We recommend using a pedal-specific, transformer-isolated, wall-wart power supply or a power supply with multiple isolated-outputs. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not always filter dirty power and may result in unwanted noise. DO NOT POWER THE ZOAR HIGHER THAN 18V!
