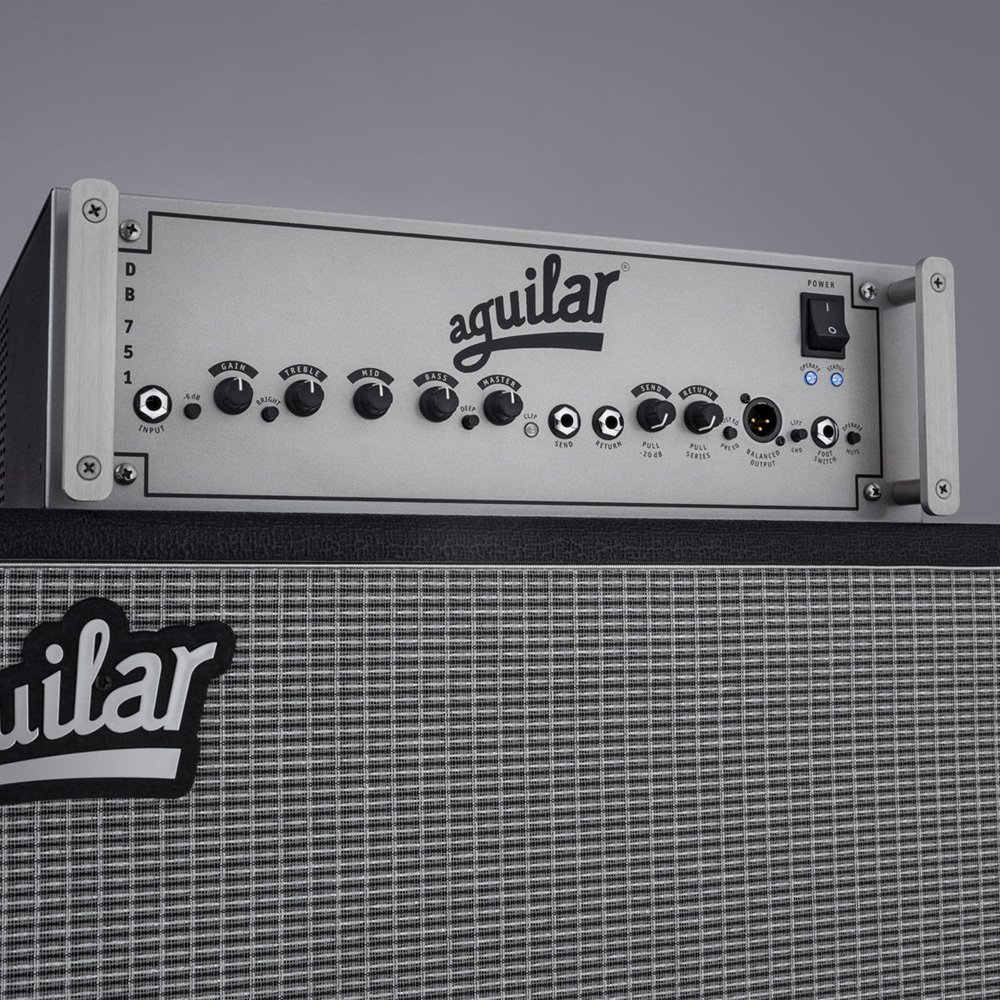

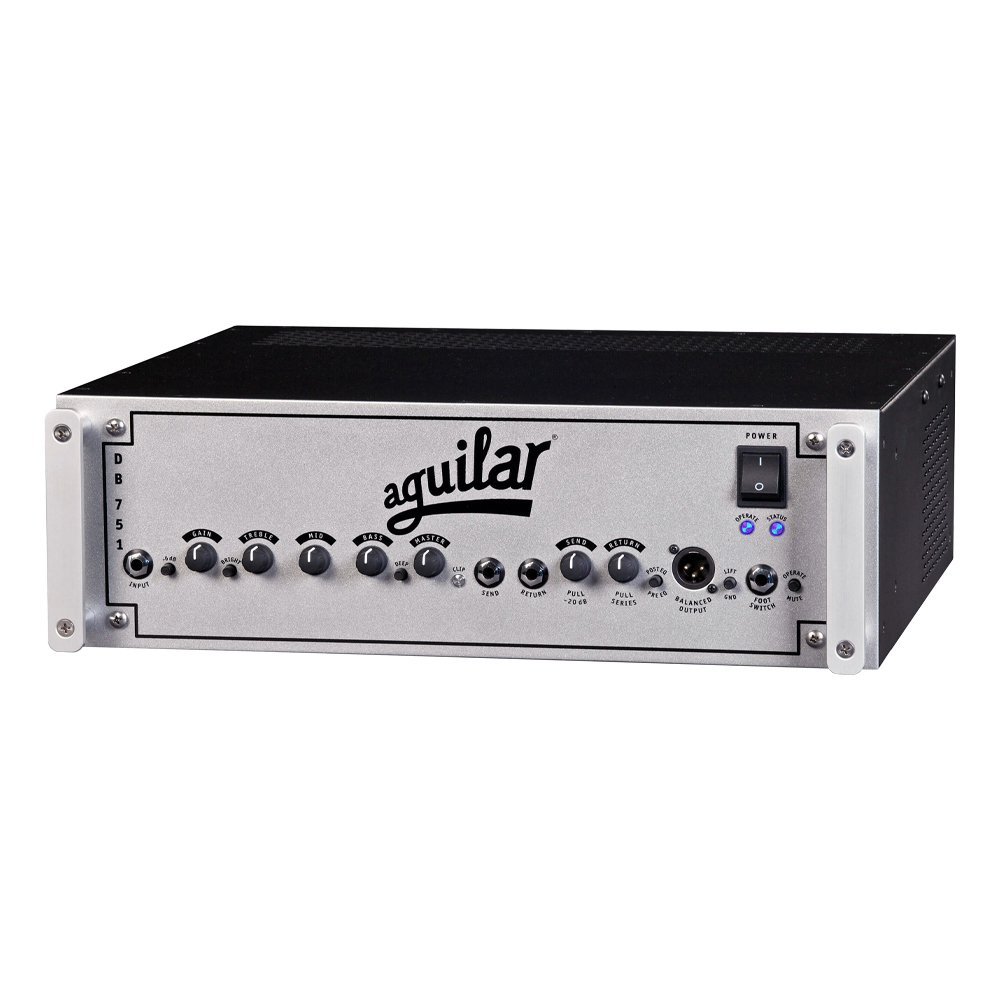

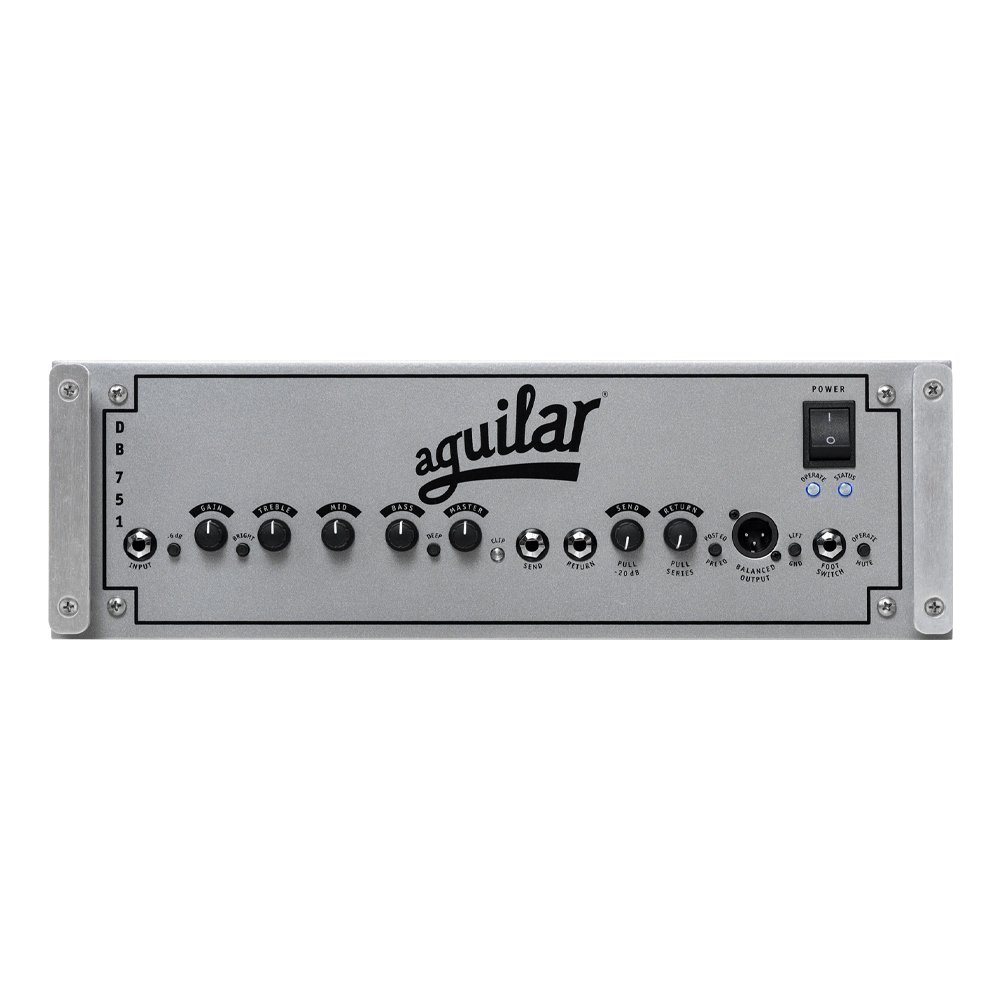

The DB® 751 combines the legendary tube-driven tone of the DB® 750 with greater EQ control. A perfect combination of raw power and excellent tone, the DB® 751 continues the legacy set by the world famous DB® 750. Delivering 975 Watts at 2 ohms and 750 Watts at 4 ohms, this amp has the headroom you need to play any size venue.

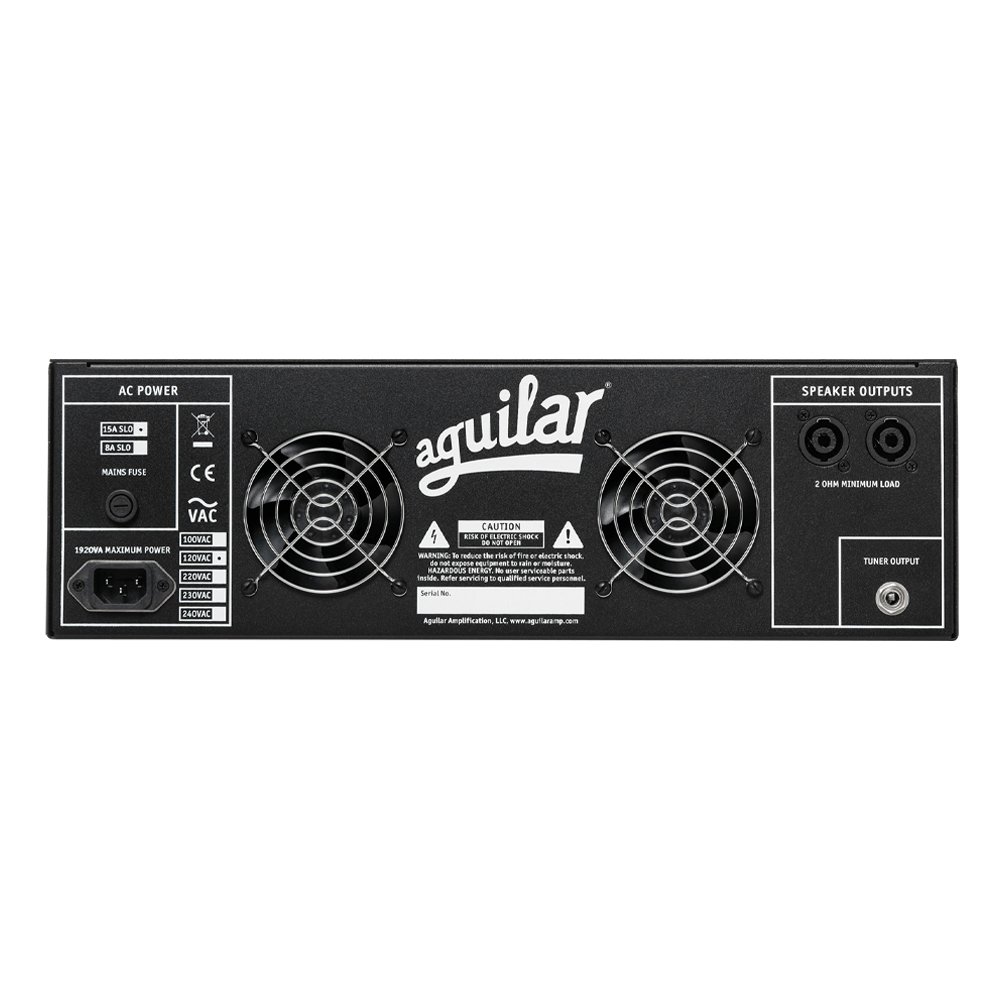

DB® 751 FEATURES Self-Diagnostic Protection Circuit and Thermal Overload Protection Circuit (both with LED indicators) Power Output: 975 watts @ 2 ohms, 750 watts @ 4 ohms, 400 watts @ 8 ohms Preamp Section: Three 12AX7’s Power Section: 12 complimentary lateral MOSFETs Transformer: Custom Aguilar toroidal power transformer EQ Section: passive tone stack with active midrange element Bass: +12 / -12 @ 40Hz Midrange: +12 / -12 @ 750Hz Treble: +12 / -7 @ 4kHz Deep Switch: Adds 5 dB of broadband boost at 30 Hz Bright Switch: Adds 5 dB of broadband boost at 5-7 kHz Effects Loop: Send is push/pull for line or instrument level; Return is push/pull for parallel or series operation Inputs: One 1/4″ input jack with an active/passive switch Outputs: Two Neutrik Speakon speaker outputs, Jensen XLR balanced output (with pre/post EQ and ground lift switch) and Tuner out. Cooling: Two high-quality whisper fans with thermal speed control Dimensions: 17″ W x 14″ D x 5.25″ H Rack Size: Three Spaces, Includes detachable rack ears Weight: 42 lbs Warranty: Ten Year Limited Includes: Rack Ears Optional: Head Cases in DB Colors
